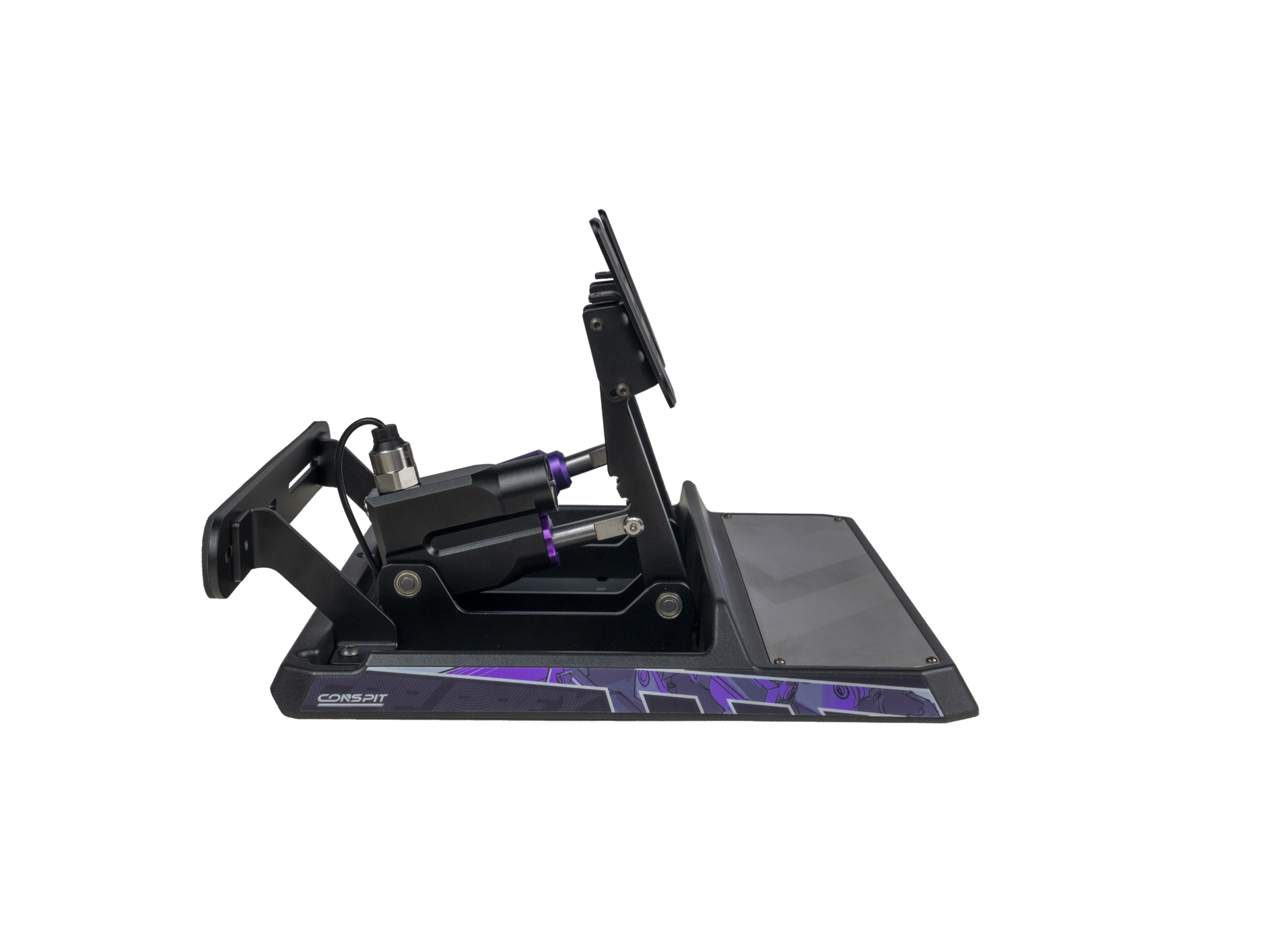

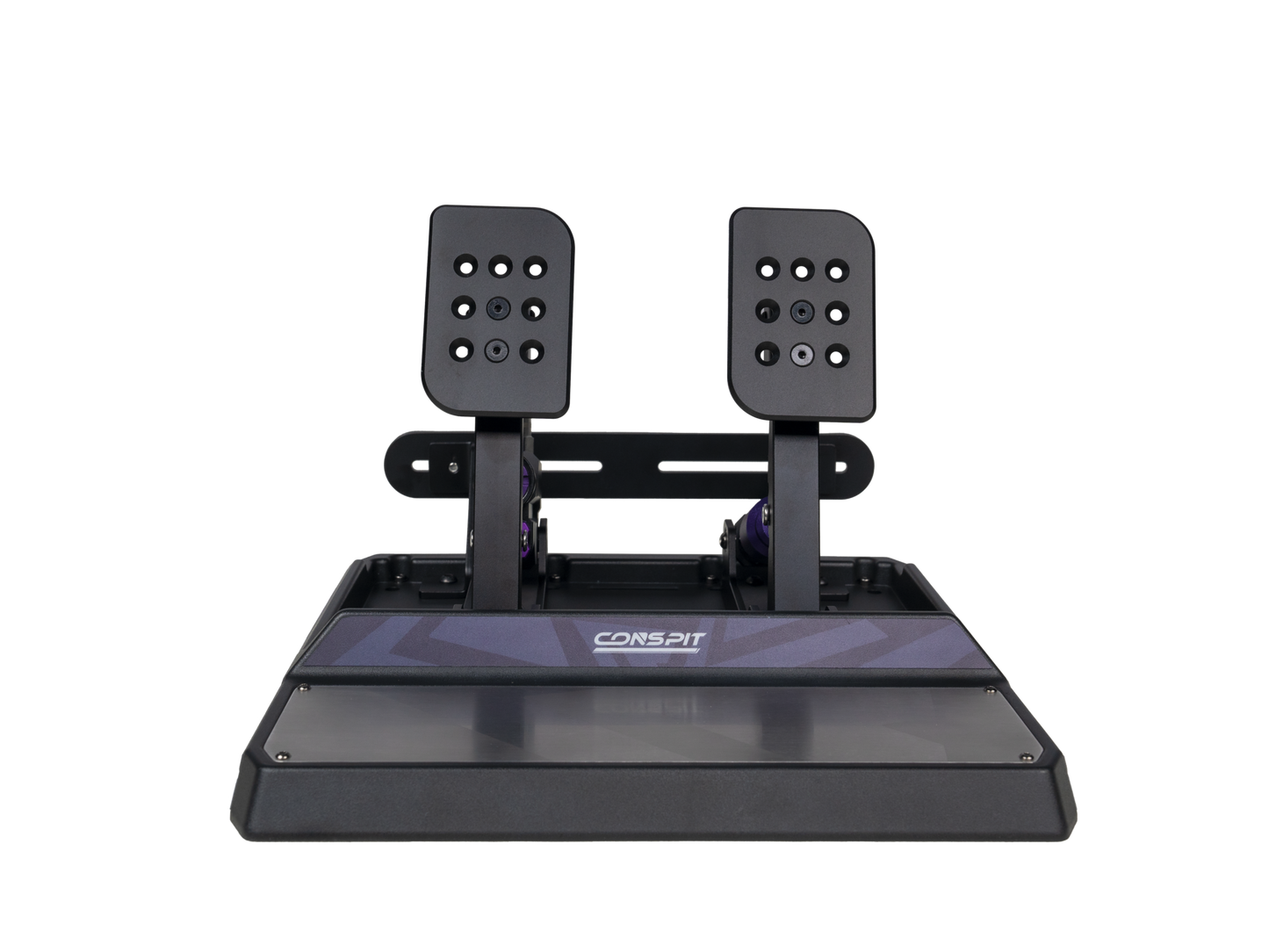

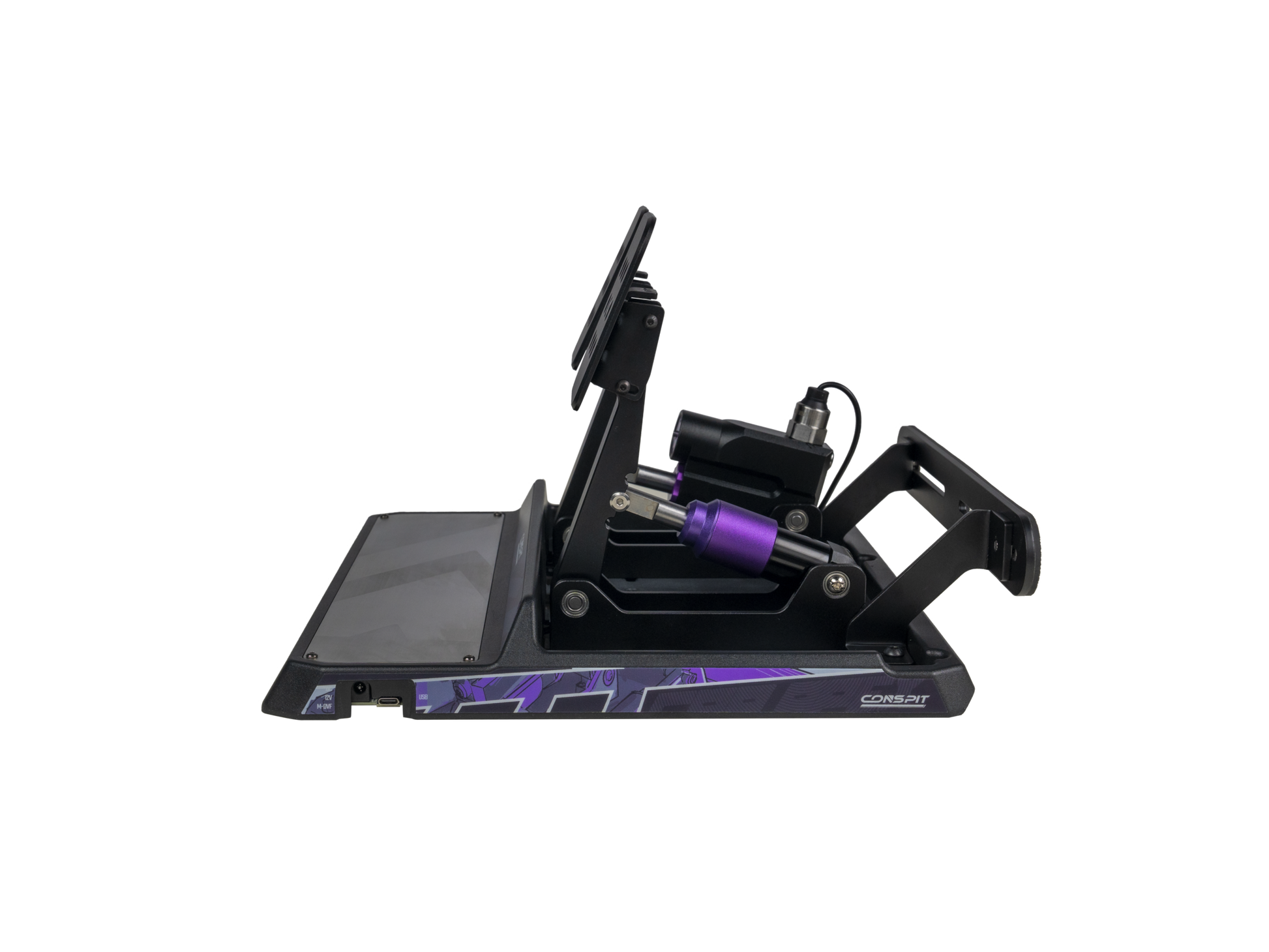

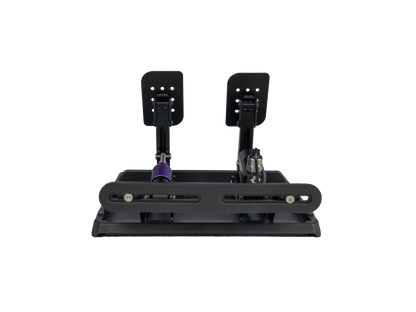

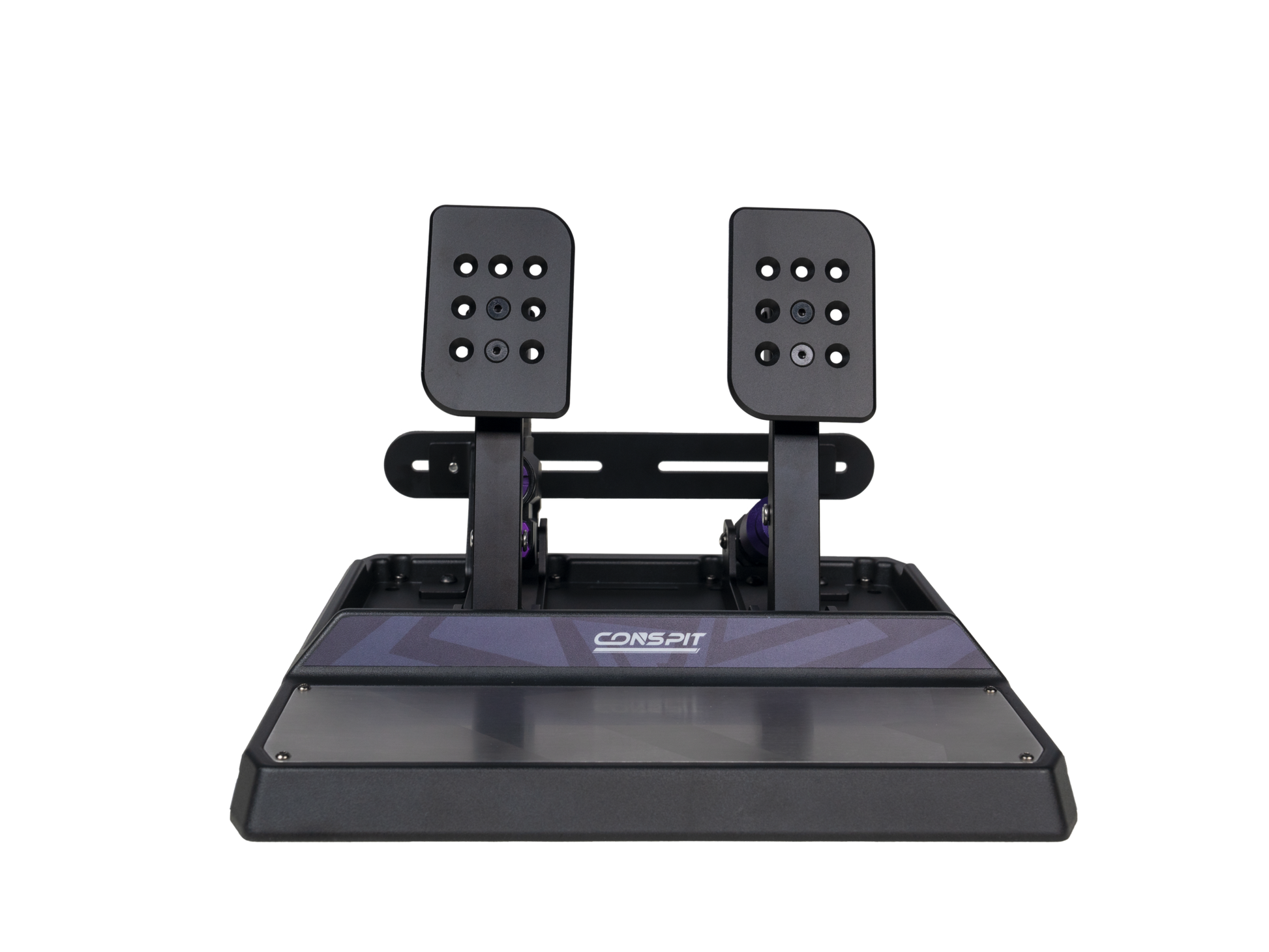

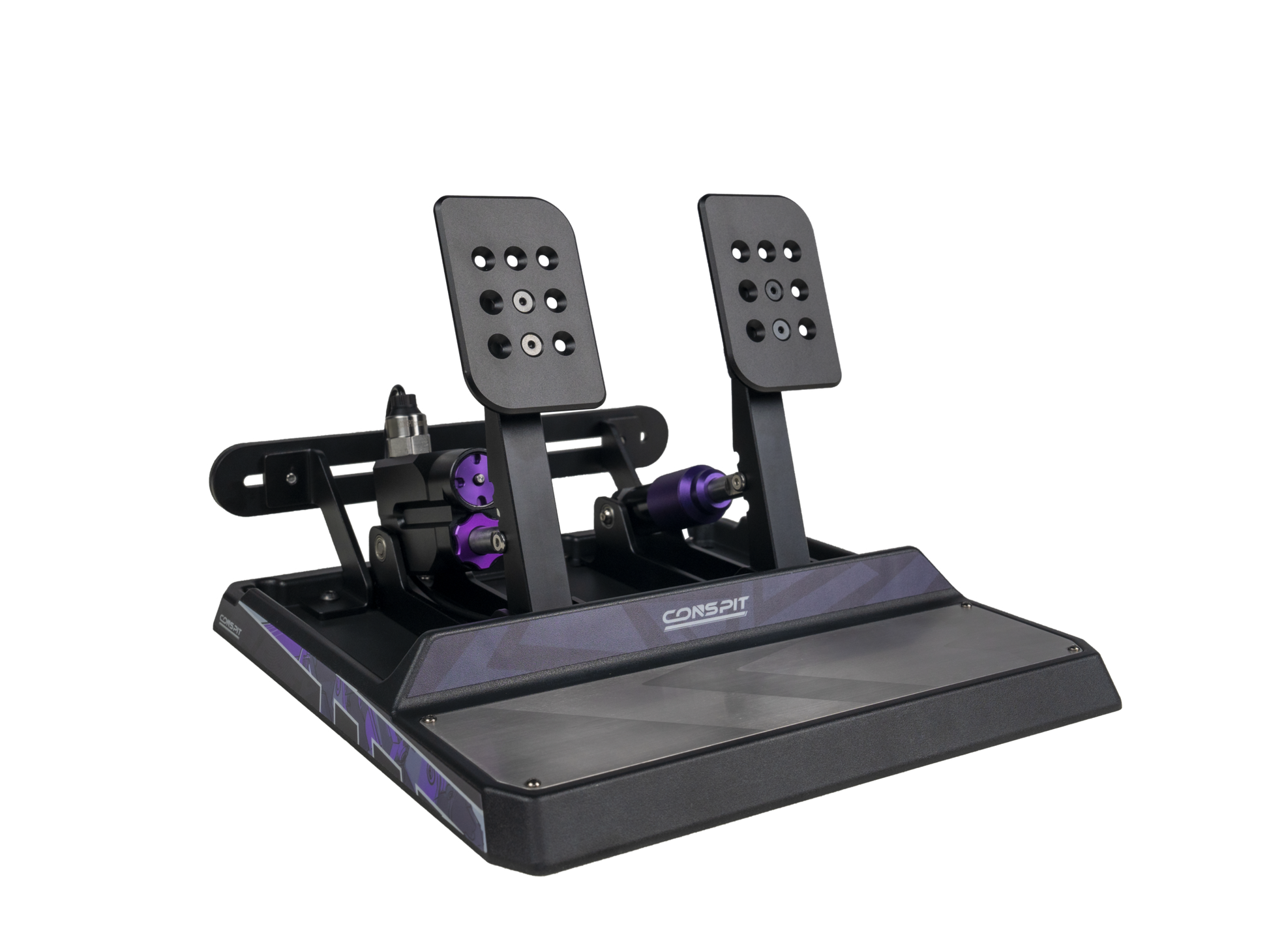

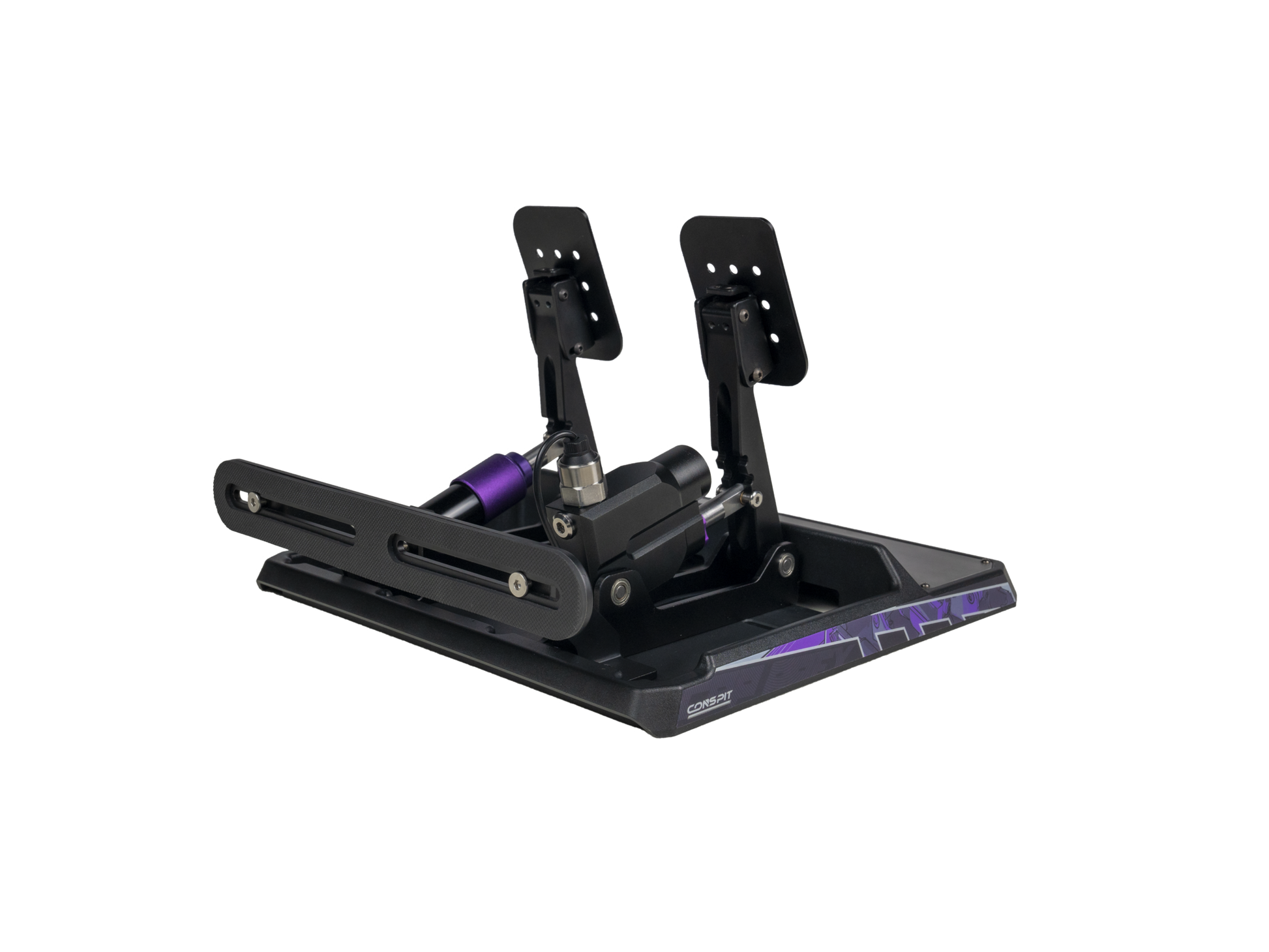

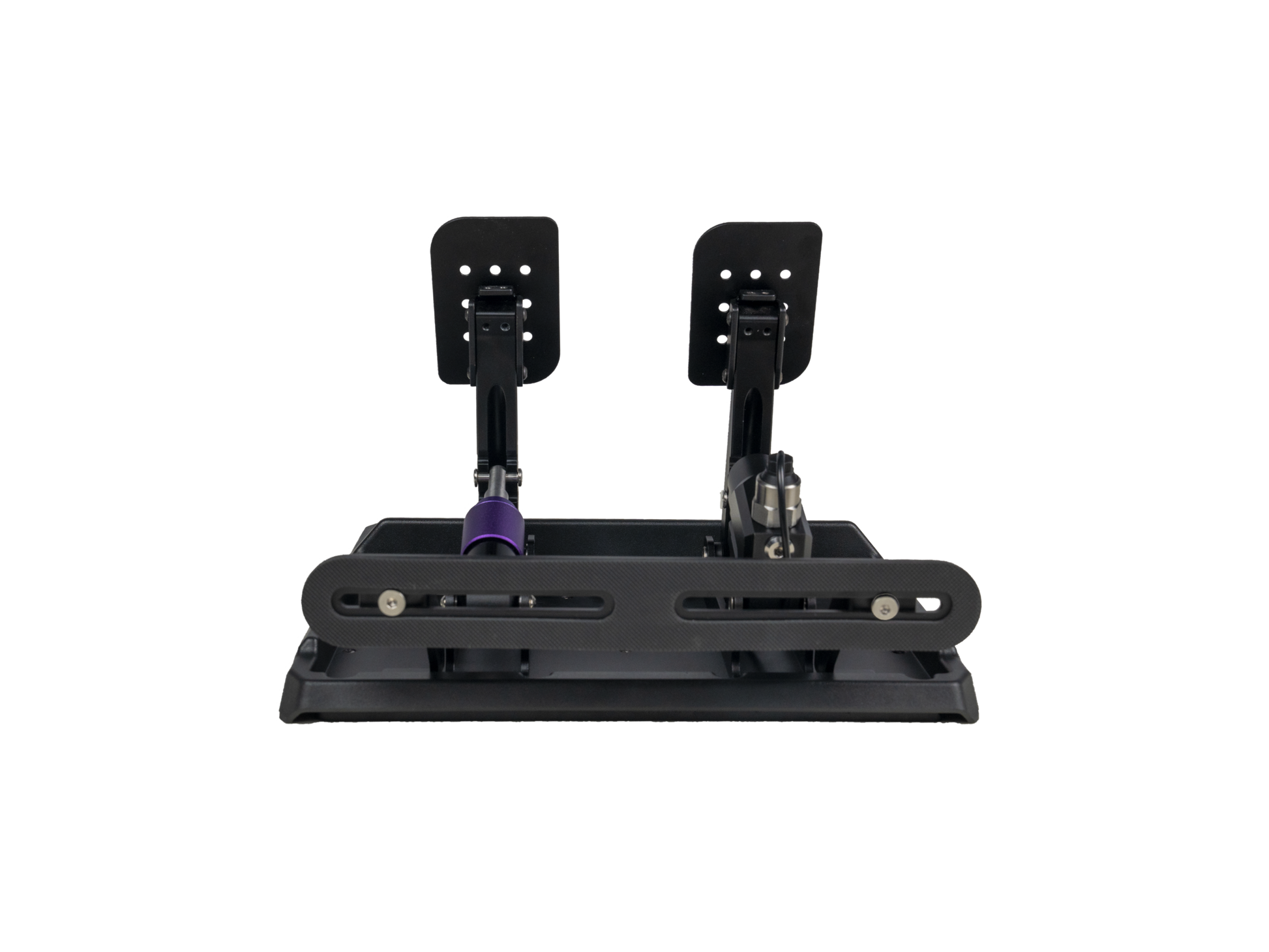

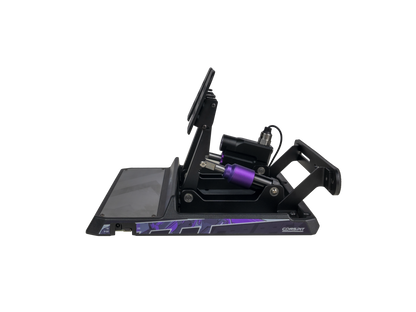

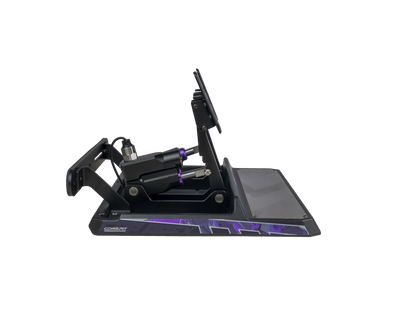

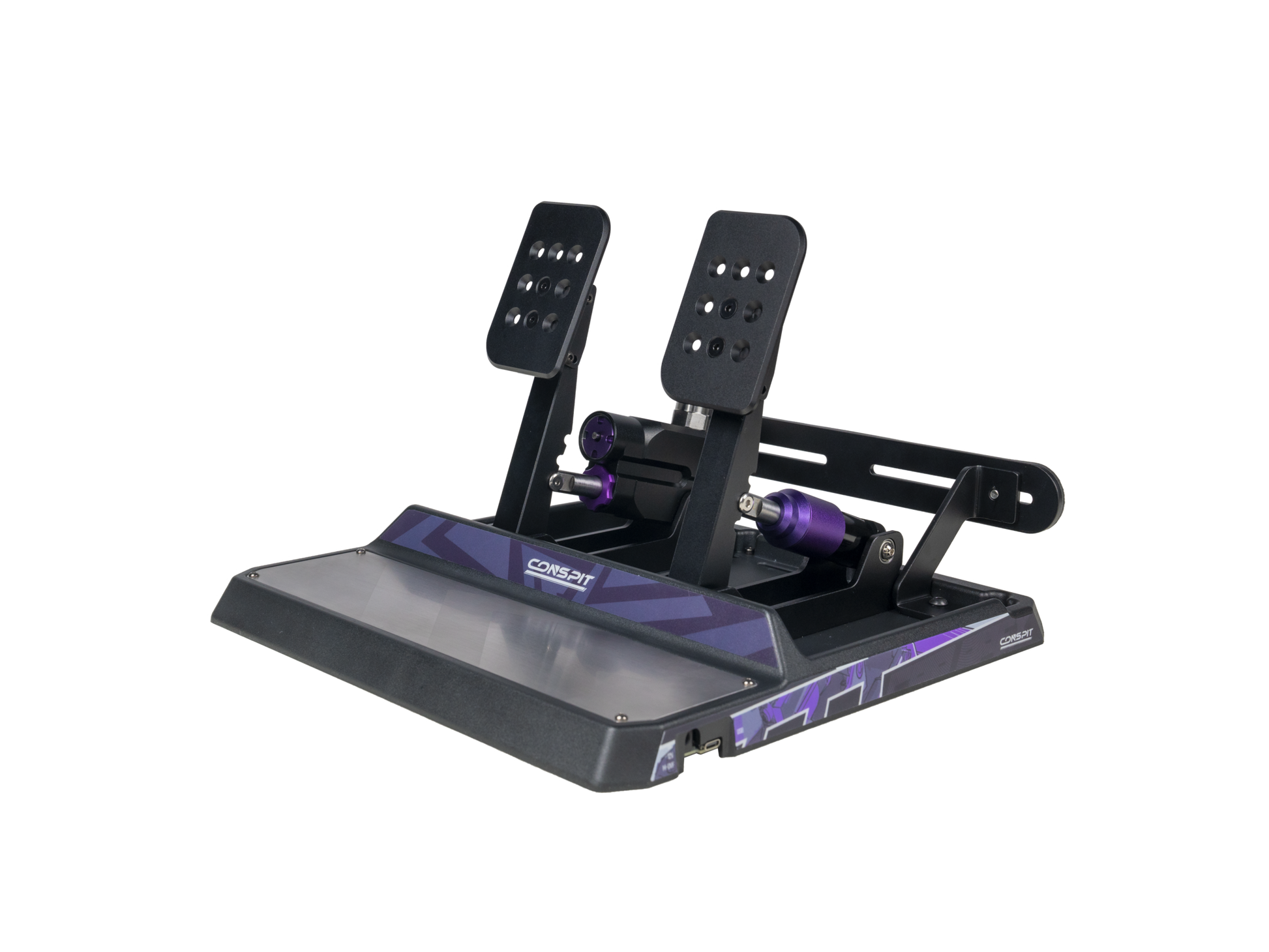

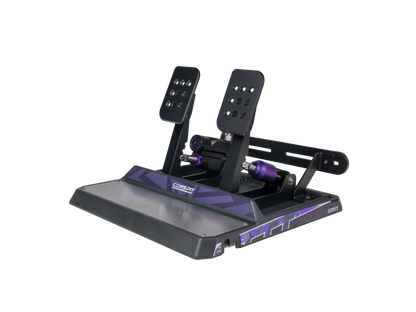

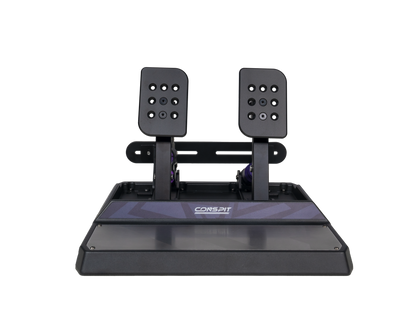

Conspit CPP APEX Hydraulic Sim Racing Pedals

The Conspit CPP APEX represents CONSPIT’s next-generation approach to accessible hydraulic sim racing pedals. By combining patented sensor technology with advanced hydraulic engineering, the CPP APEX delivers precise brake control, realistic pedal feel, and professional-grade durability—bringing hydraulic performance within reach for serious sim racers.

Designed for competitive sim racing, esports, and high-performance simulator installations, the CPP APEX focuses on consistency, modulation accuracy, and long-term reliability under demanding driving conditions.

---

Key Highlights

• Hydraulic Brake System with Dual-Chamber Architecture
• 10MPa High-Precision Hydraulic Pressure Sensor
• Two-Stage Brake Feel – Spring + elastomer progression
• Race-Grade Aluminum Alloy Construction (T6 Heat Treated)
• Expandable Pedal System – Optional clutch pedal support
• CONSPIT LINK 2.0 Software Integration

---

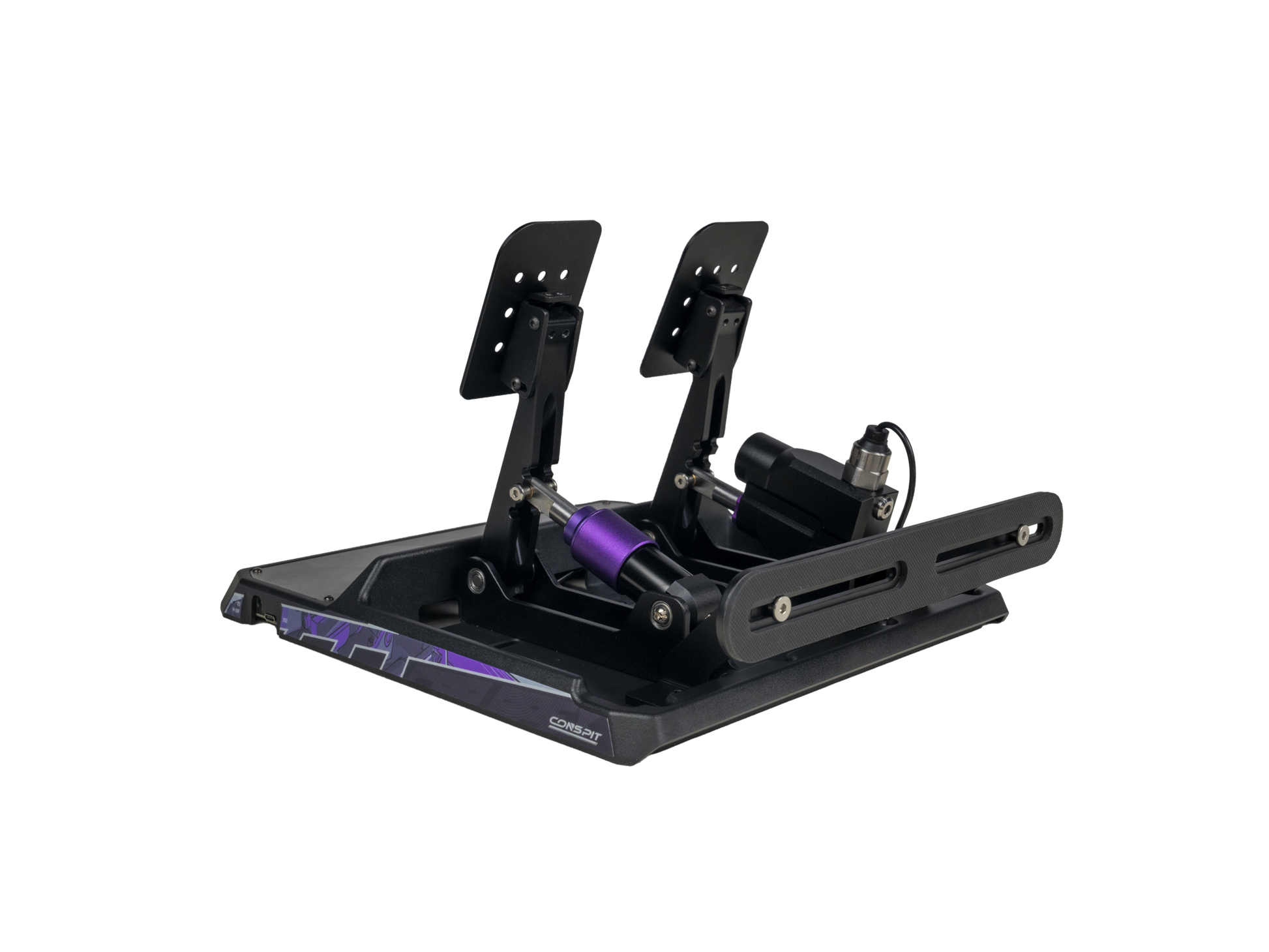

Hydraulic Innovation – Vertical Dual-Chamber Design

The CPP APEX features CONSPIT’s vertical dual-chamber hydraulic architecture, integrating a hydraulic cylinder with an elastomer-based secondary chamber. The one-piece brake cylinder is die-cast from aluminum alloy and CNC-machined for precision, delivering smooth pedal response and exceptional durability.

This compact design ensures stable hydraulic behavior, reduced hysteresis, and consistent brake feel across short sprints and long endurance sessions.

---

10MPa High-Precision Hydraulic Sensor

At the heart of the braking system is a custom 10MPa hydraulic pressure sensor, engineered for accurate and linear pressure detection. Unlike traditional load cell systems, the hydraulic sensor captures brake pressure directly from the fluid system, allowing for highly nuanced threshold and trail braking.

The wide pressure range ensures predictable response and excellent modulation at both low and high brake forces.

---

Two-Stage Brake Feel

The CPP APEX delivers a realistic two-stage brake feel through a combined spring and elastomer system. The initial spring stage simulates caliper-to-pad contact, while the elastomer provides progressively firmer resistance during heavy braking.

Drivers can further customize pedal feel by selecting different elastomer stiffness options, tailoring brake response to personal preference or vehicle type.

---

Enclosed Throttle Design

The throttle pedal features a fully enclosed structure, protecting internal components such as the spring and throttle rod from dust and debris. Paired with a proven Hall-effect sensor, the throttle delivers smooth, precise, and wear-free input detection.

This design enhances long-term reliability while maintaining accurate throttle modulation.

---

Race-Ready Materials & Precision Engineering

All primary pedal components are constructed from high-grade aluminum alloy, enhanced through T6 heat treatment and precision CNC machining. A sandblasted and anodized surface finish provides a premium appearance while ensuring long-term corrosion resistance.

Key load-bearing and moving components utilize precision bearings to maintain smooth operation and stability under both short-term peak loads and extended endurance use.

---

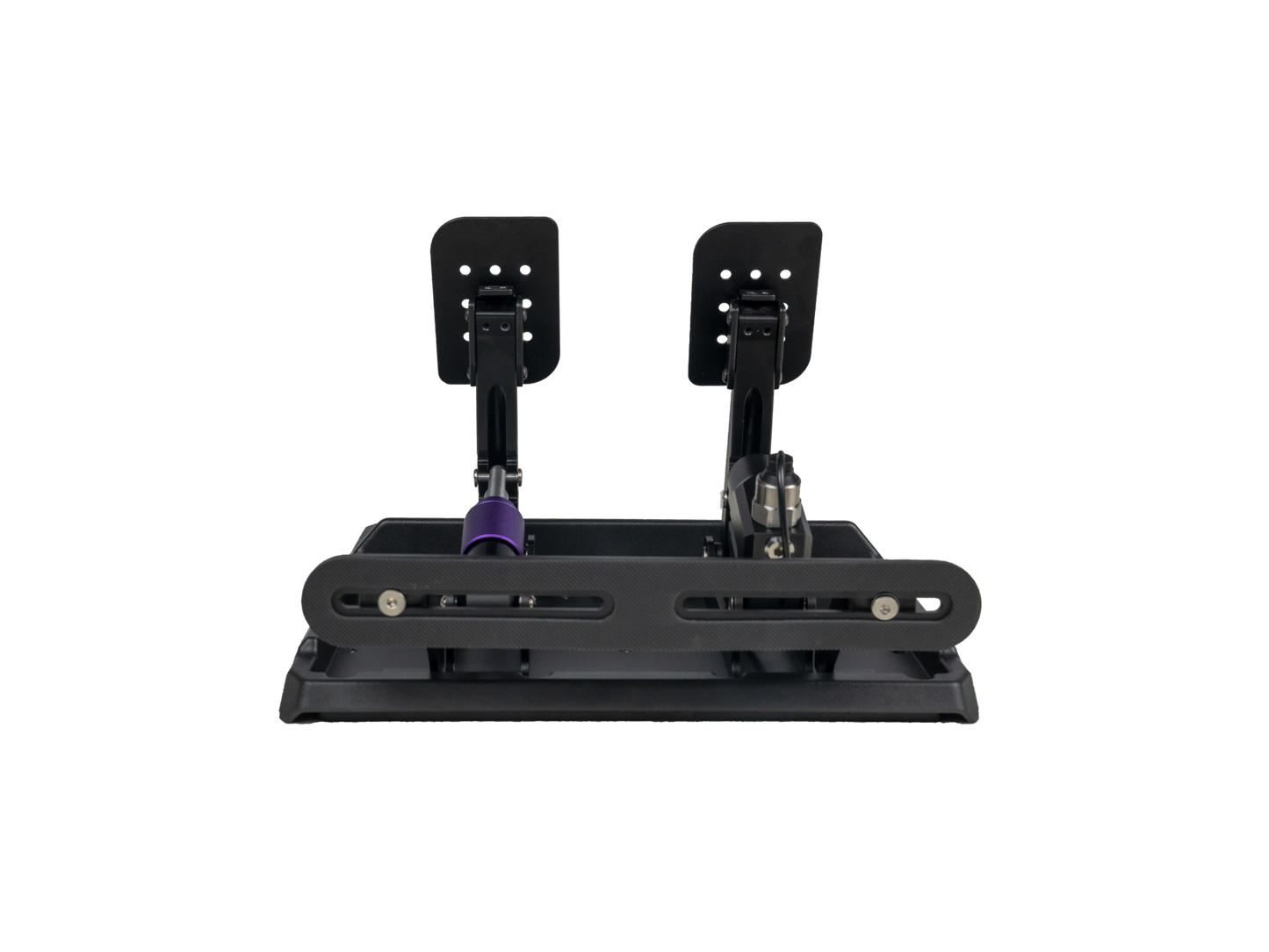

Innovative Baseplate Design

• 5mm Laser-Cut Steel Chassis – High structural strength
• Damped Sandwich Structure – Multi-layer vibration absorption
• Brushed Stainless Steel Heel Rest – Wear-resistant with laser-engraved CONSPIT branding
• Adjustable Pedal Mounting – Customizable spacing and positioning
• Hidden Cable Routing – Clean, user-friendly installation

---

Versatile Deployment & Installation

The CPP APEX is designed for flexible installation across a wide range of sim racing setups.

• Competition-Grade Mounting: Compatible with aluminum profile rigs and integrated cockpits
• Ready-to-Use Floor Setup: Includes wall-mount bracket with non-slip silicone pads

---

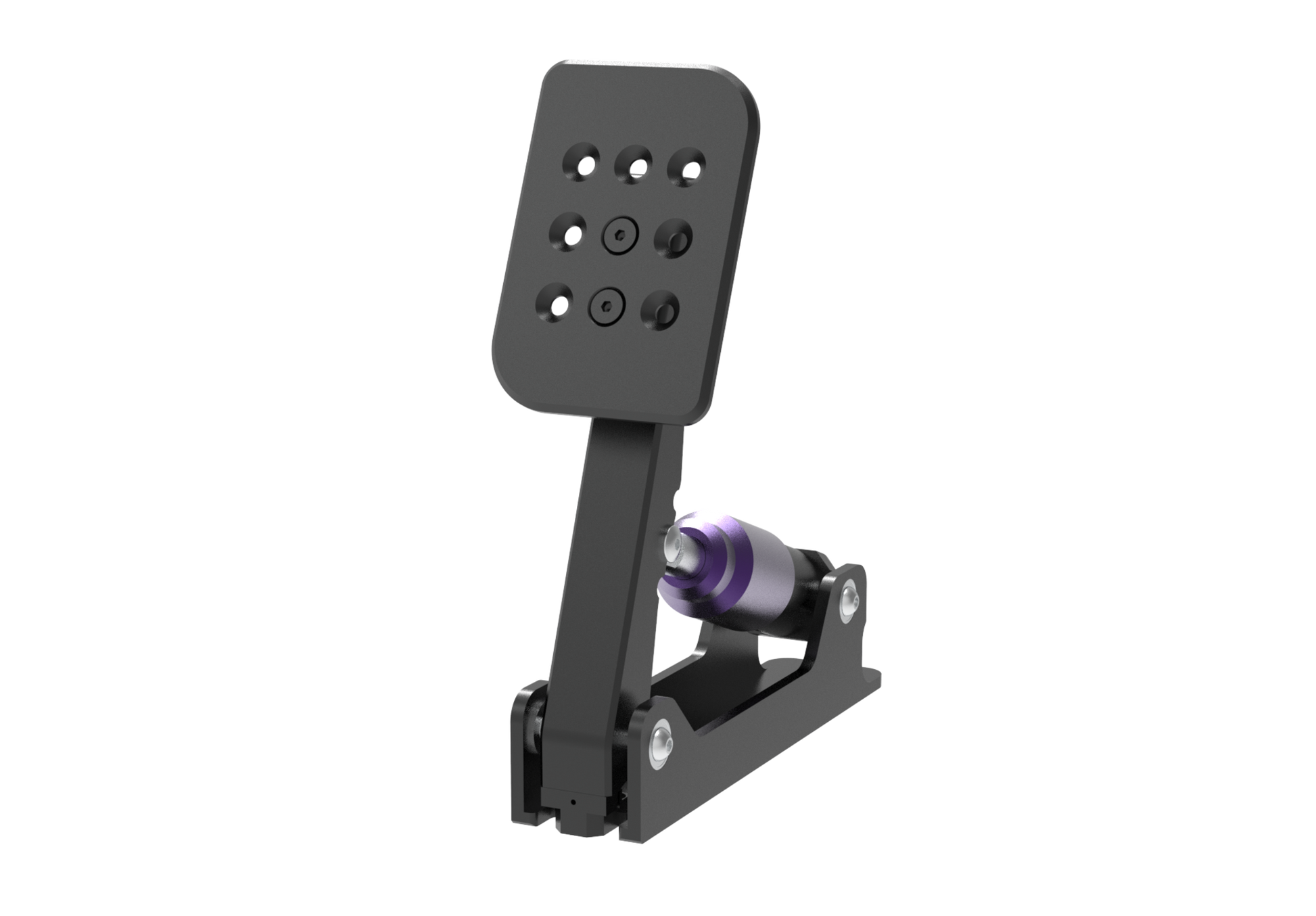

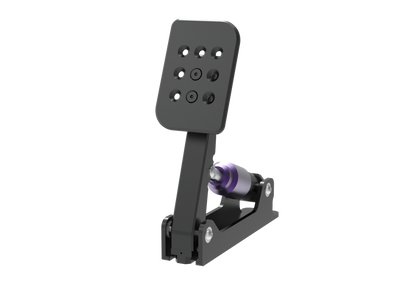

Expandable Clutch Pedal

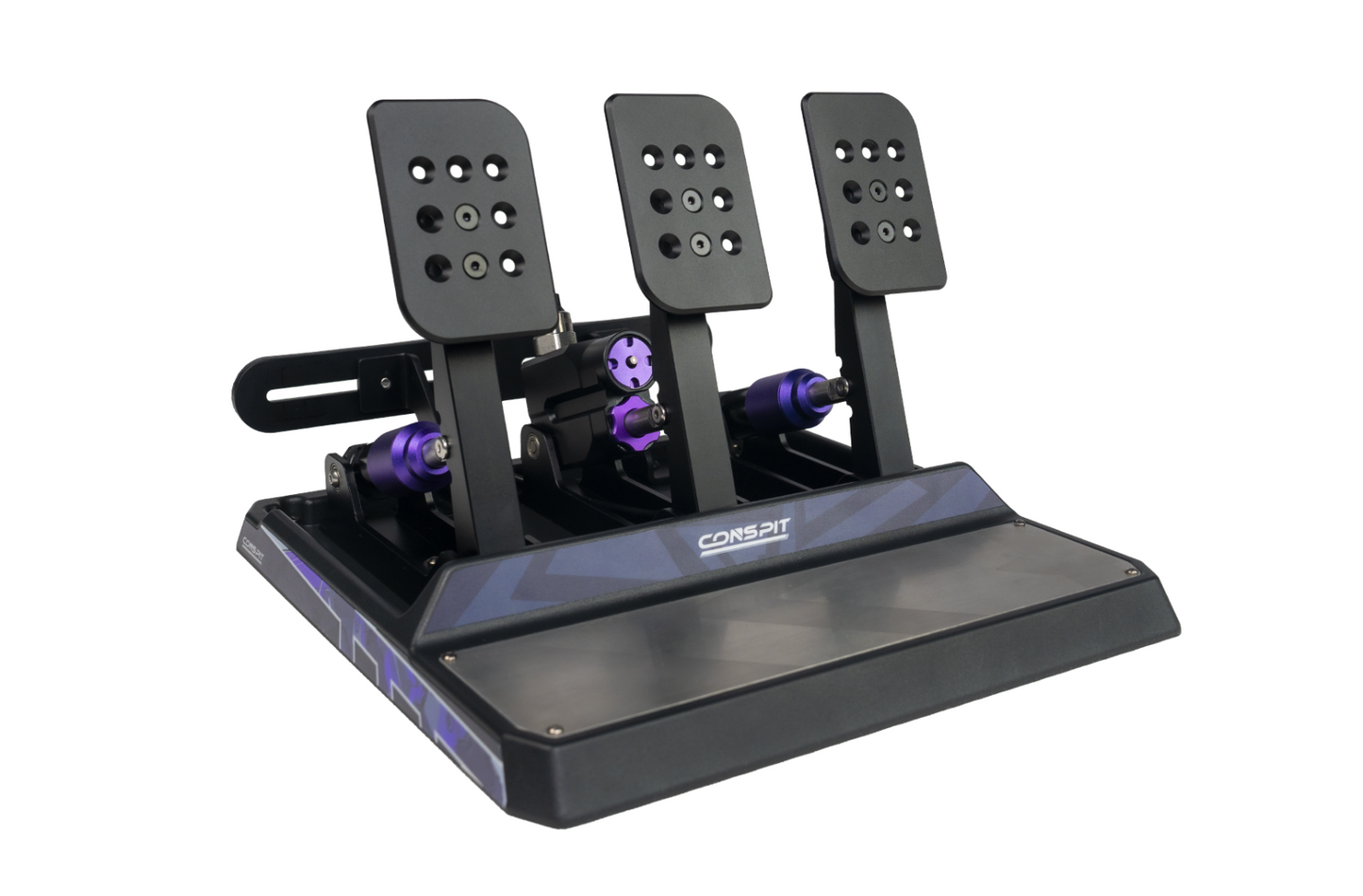

The CPP APEX is supplied as a two-pedal configuration (throttle + brake) and supports seamless expansion with an optional clutch pedal, allowing drivers to tailor the pedal set to their driving discipline.

---

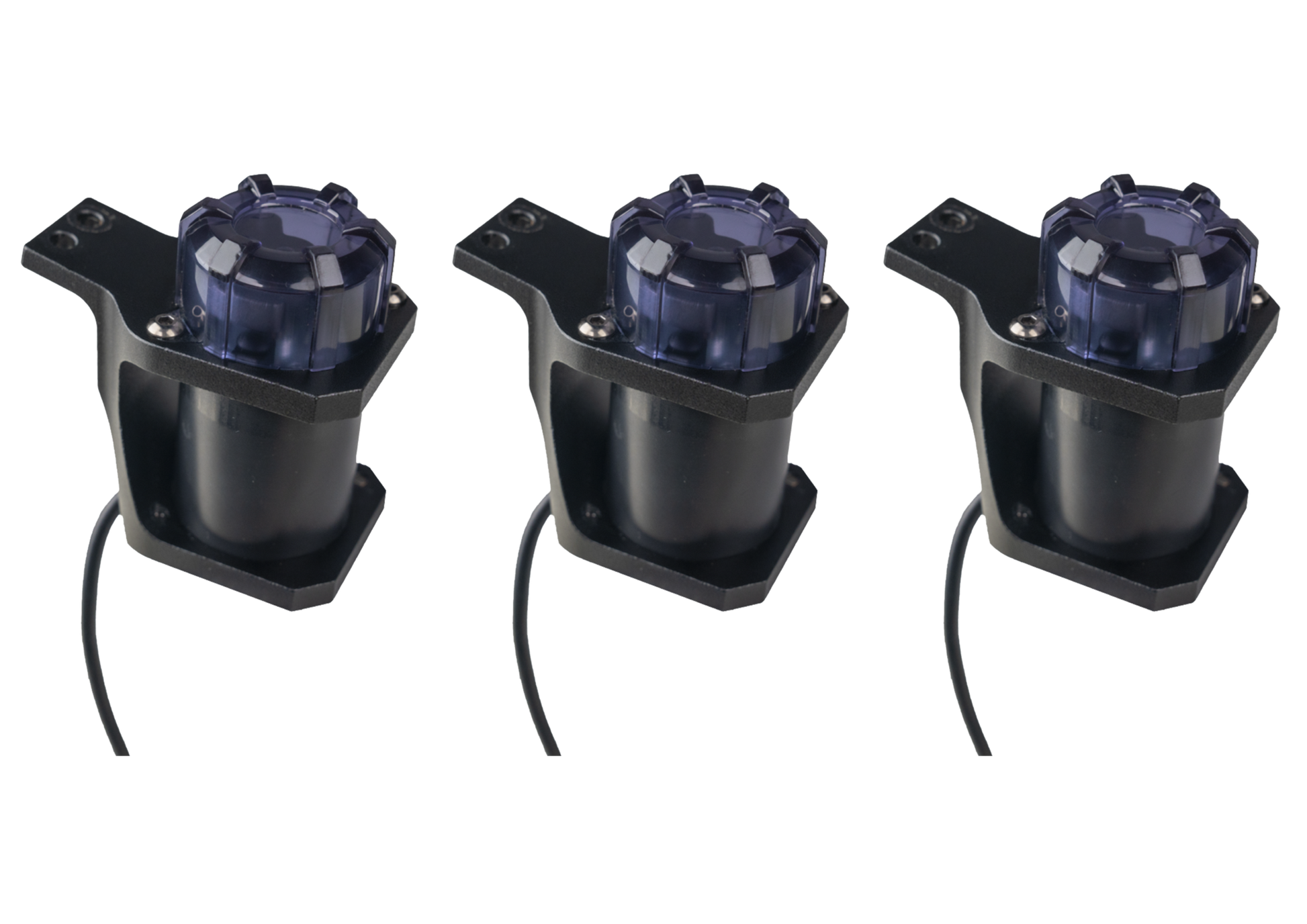

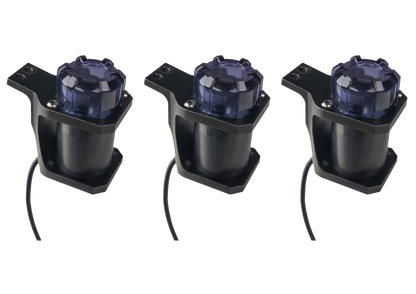

M-DVF Vibration Module (Optional)

An optional M-DVF vibration feedback module enhances immersion by providing tactile feedback through CONSPIT LINK 2.0 or SimHub’s ShakeIt Motor feature. Customizable vibration profiles allow drivers to feel real-time changes in vehicle and track conditions.

Note: The vibration module is not supported when the pedals are connected via wheelbase integration.

---

CONSPIT LINK 2.0 Software

Using CONSPIT LINK 2.0, users can configure key pedal parameters including:

• Brake pressure curves
• Brake input limiters
• Throttle and clutch mapping
• Quick preset switching

---

Connectivity & Integration

• Direct USB connection to Windows PC
• Integration via rear port of CONSPIT ARES wheelbases
• Standalone pedal operation supported

---

Frequently Asked Questions

Are the Conspit CPP APEX pedals hydraulic?

Yes. The Conspit CPP APEX features a true hydraulic brake system with a dual-chamber architecture, designed to deliver realistic brake pressure modulation and consistent pedal feel.

What type of brake sensor is used in the CPP APEX?

The CPP APEX uses a high-precision 10MPa hydraulic pressure sensor, measuring brake input directly from the hydraulic system for accurate and linear response.

Is the Conspit CPP APEX suitable for competitive sim racing?

Yes. The CPP APEX pedals are designed for competitive sim racing, esports, and professional simulator setups, offering consistent braking performance and high durability.

Can the brake feel be adjusted?

Yes. The brake pedal features a two-stage spring and elastomer system, with multiple elastomer options available to fine-tune stiffness and pedal progression.

Can I add a clutch pedal later?

Yes. The CPP APEX is supplied as a two-pedal set (throttle and brake) and supports expansion with an optional clutch pedal.

Where can I buy the Conspit CPP APEX pedals in India?

The Conspit CPP APEX Hydraulic Sim Racing Pedals are officially available in India from Race Sims, with local support and professional simulator integration guidance.

Learn more about Conspit sim racing hardware in India and explore the complete Conspit product ecosystem available from Race Sims.

---

Why Buy from Race Sims?

• Official Conspit sourcing in India
• Local technical guidance and setup support
• Professional simulator integration expertise
• Trusted by racers, teams, and sim racing centers

In India, the Conspit CPP APEX Hydraulic Sim Racing Pedals are sold and supported by Race Sims, specialists in professional-grade racing simulator solutions.

---

Note: Optional clutch pedal and vibration module are sold separately unless explicitly specified.
