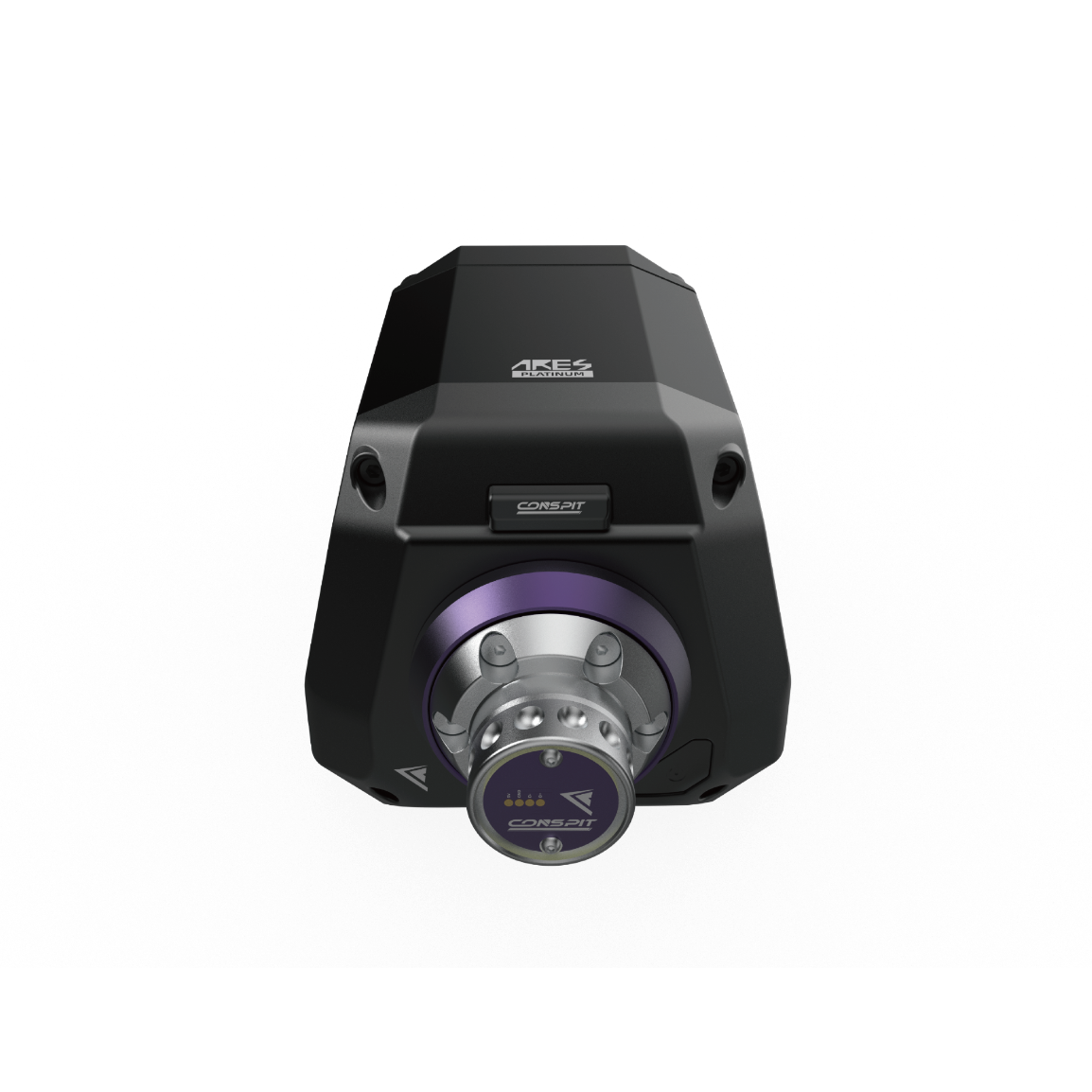

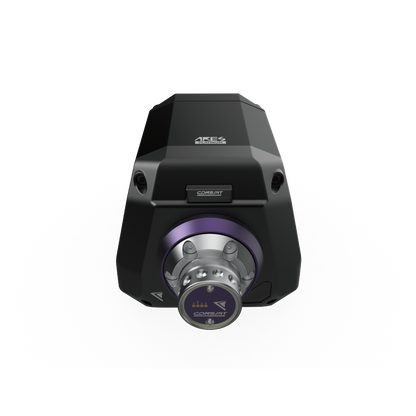

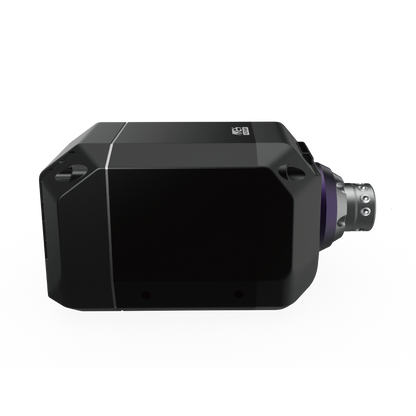

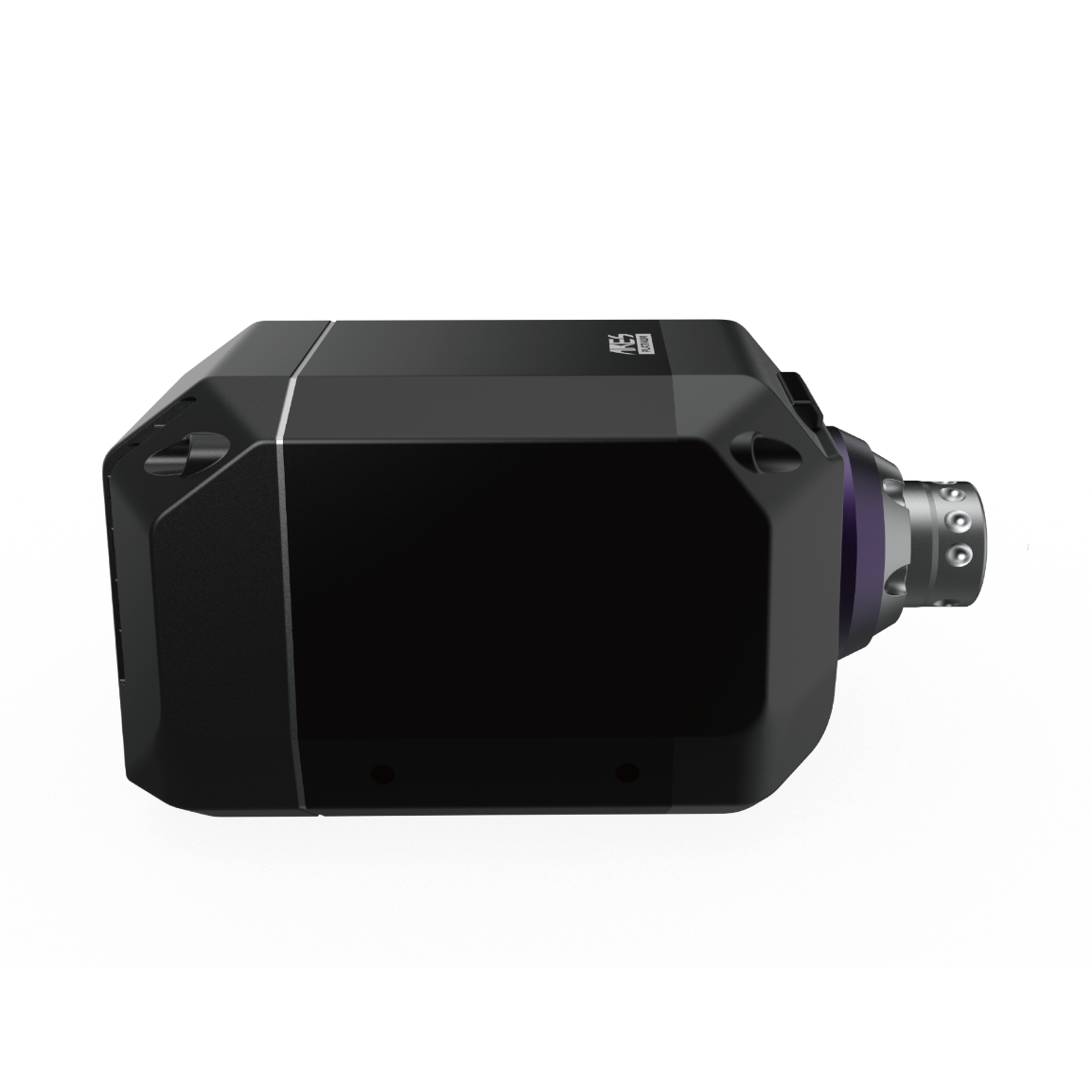

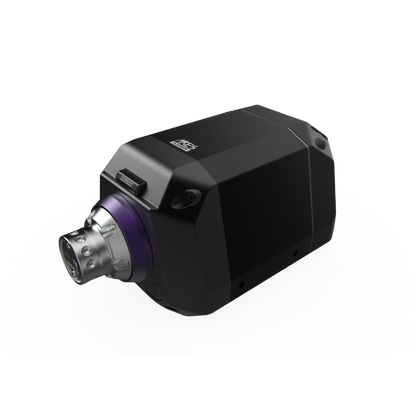

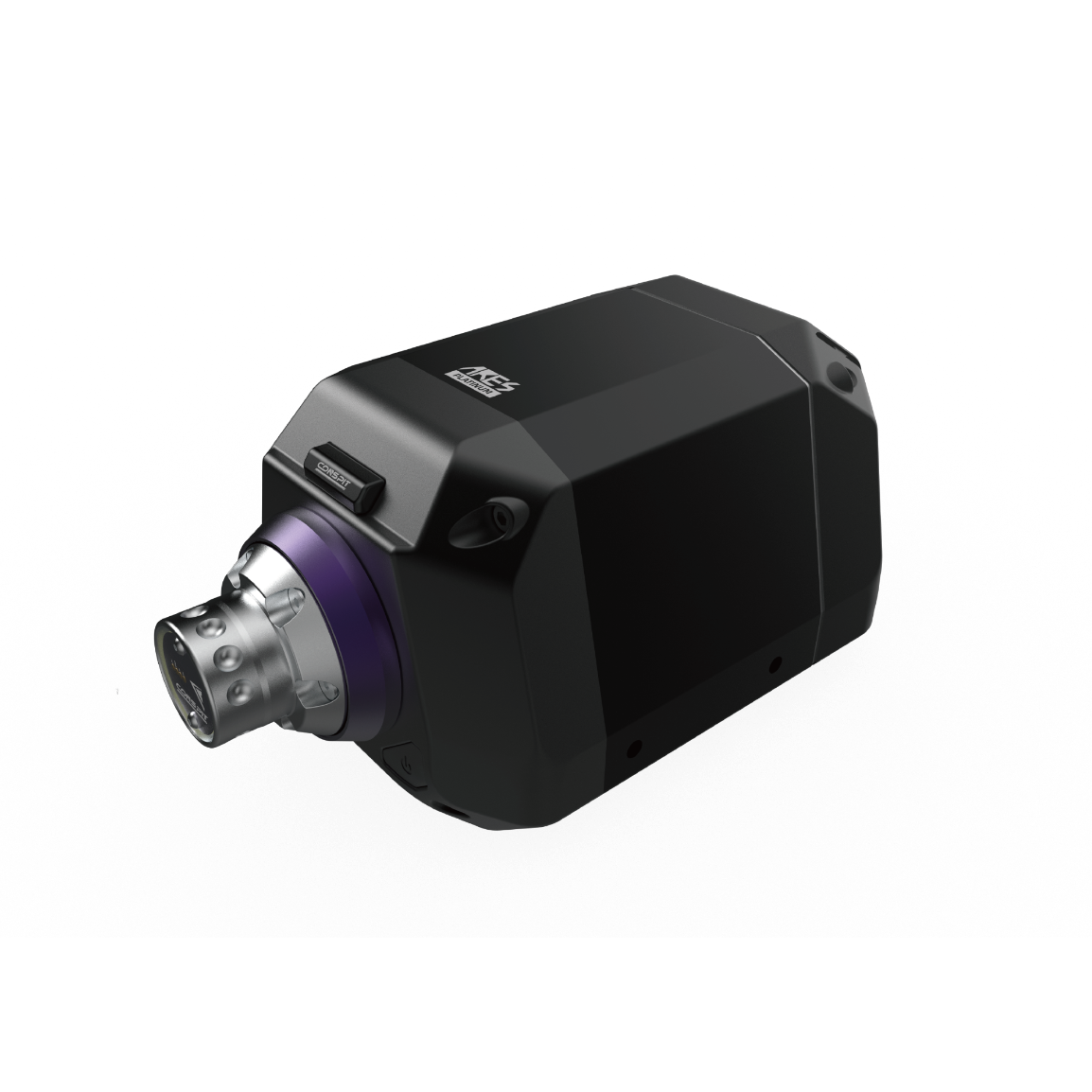

CONSPIT ARES Platinum 20Nm (holding Torque) CDR QR (NRG Style) Direct Drive Sim Racing Wheelbase

Conspit ARES Platinum 20Nm Direct Drive Sim Racing Wheelbase

The Conspit ARES Platinum 20Nm Direct Drive Wheelbase represents the highest-performance evolution of CONSPIT’s ARES direct drive platform. Designed for professional sim racers, esports athletes, and advanced simulator installations, the ARES Platinum delivers exceptional force feedback fidelity, ultra-fast response, and uncompromising mechanical stability.

Developed by CONSPIT’s motorsport engineering team in collaboration with professional drivers, the ARES series is purpose-built for sim racing—utilizing proprietary motor architecture and control systems rather than adapted industrial servo solutions.

---

Key Highlights

• 20Nm Holding Torque – High-output force feedback for professional sim racing
• 23-bit High-Resolution Optical Encoder – Ultra-precise steering position detection
• Proprietary Skew-Pole Direct Drive Motor – Designed specifically for sim racing
• Advanced Force Feedback Dynamics – Ultra-smooth, detailed, and responsive output
• Ultra-Low Cogging Torque (<2.3%)
• Advanced Thermal Management System – Stable performance during long sessions
• CONSPIT CDR Quick Release System

---

23-bit Optical Encoder Precision

At the core of the ARES Platinum 20Nm is a 23-bit high-resolution optical encoder, offering superior accuracy, consistency, and long-term reliability compared to magnetic encoders with equivalent resolution. This ensures exceptionally smooth steering input detection and precise reproduction of fine force feedback details.

This level of precision is especially critical in high-speed, high-downforce racing scenarios where micro-corrections define lap time and vehicle control.

---

Proprietary Skew-Pole Direct Drive Motor

The ARES Platinum utilizes a proprietary skew-pole direct drive motor, engineered specifically for the demands of racing simulation. Both the stator and rotor employ a dual skewed pole design, significantly reducing torque ripple, electromagnetic vibration, and audible noise.

• Lightning-fast torque response
• Minimal cogging torque
• Ultra-smooth steering feel
• Highly stable force feedback under load

---

Advanced Force Feedback Dynamics

An advanced motor control system enables the ARES Platinum to achieve an exceptionally high torque slew rate of up to 9.5 Nm/ms, allowing the wheelbase to reproduce rapid force changes such as kerb strikes, tyre load transitions, and surface detail with outstanding clarity.

The result is a force feedback experience that is both highly detailed and predictable, enhancing driver confidence and consistency.

---

Ultra-High Torque Density & Thermal Stability

Using ultra-high magnetic permeability cores, powerful NdFeB magnets, optimized air gap ratios, and a high slot fill factor, the ARES Platinum achieves exceptional torque density within a compact footprint.

Real-time, high-frequency thermal monitoring ensures stable motor and control electronics operation, maintaining consistent output even during long endurance racing sessions.

---

Verified Real-World Torque Testing

CONSPIT employs industry-grade torque validation during development to ensure all performance data reflects real-world output. High-precision dynamic torque sensors with sub-0.01Nm resolution are used to measure actual torque at the steering wheel, matching motor output signals for precise calibration.

This ensures the ARES Platinum delivers genuine, usable 20Nm holding torque rather than theoretical or inflated figures.

---

CONSPIT LINK 2.0 Software

The ARES Platinum 20Nm is fully configurable using CONSPIT LINK 2.0 software, allowing users to:

• Fine-tune force feedback parameters
• Create and manage simulator-specific profiles
• Monitor wheelbase status in real time
• Switch quickly between vehicle setups

---

Mounting, Safety & Connectivity

• Quick Release: CONSPIT CDR Quick Release System
• Bottom Mounting: M6 × 4
• Side Mounting: M8 × 4
• Optional: CES Emergency Stop

The CNC-machined aluminum housing provides exceptional rigidity and efficient heat dissipation, suitable for high-torque direct drive applications.

---

Compatibility & Platform Support

• Platform: Windows PC
• Connection: USB direct connection
• Software: CONSPIT LINK 2.0

---

Frequently Asked Questions

Is the Conspit ARES Platinum 20Nm suitable for professional sim racing?

Yes. The Conspit ARES Platinum 20Nm Direct Drive Wheelbase is designed for professional sim racing, esports competition, and high-end simulator installations requiring high torque and precision.

What does 20Nm holding torque mean?

20Nm holding torque refers to the continuous torque output the wheelbase can sustain without performance degradation, providing strong, stable, and predictable force feedback during long racing sessions.

Does the ARES Platinum 20Nm use an optical encoder?

Yes. The wheelbase features a 23-bit high-resolution optical encoder, enabling extremely precise steering position detection and smooth force feedback delivery.

How does the ARES Platinum differ from the standard ARES models?

The ARES Platinum features higher holding torque, enhanced torque slew rate, ultra-low cogging, and advanced thermal management for demanding professional applications.

Which software is used to configure the ARES Platinum 20Nm?

The wheelbase is configured using CONSPIT LINK 2.0 software, allowing detailed force feedback tuning and profile management across different simulators.

Where can I buy the Conspit ARES Platinum 20Nm in India?

The Conspit ARES Platinum 20Nm Direct Drive Wheelbase is officially available in India from Race Sims, with local support and professional simulator integration guidance.

Learn more about Conspit sim racing hardware in India and explore the complete Conspit product ecosystem available from Race Sims.

---

Why Buy from Race Sims?

• Official Conspit sourcing in India
• Local technical guidance and setup support
• Professional simulator integration expertise
• Trusted by racers, teams, and sim racing centers

In India, the Conspit ARES Platinum 20Nm Direct Drive Wheelbase is sold and supported by Race Sims, specialists in professional-grade racing simulator solutions.

---

Note: Steering wheel, mounting brackets, and emergency stop are sold separately unless explicitly specified.
