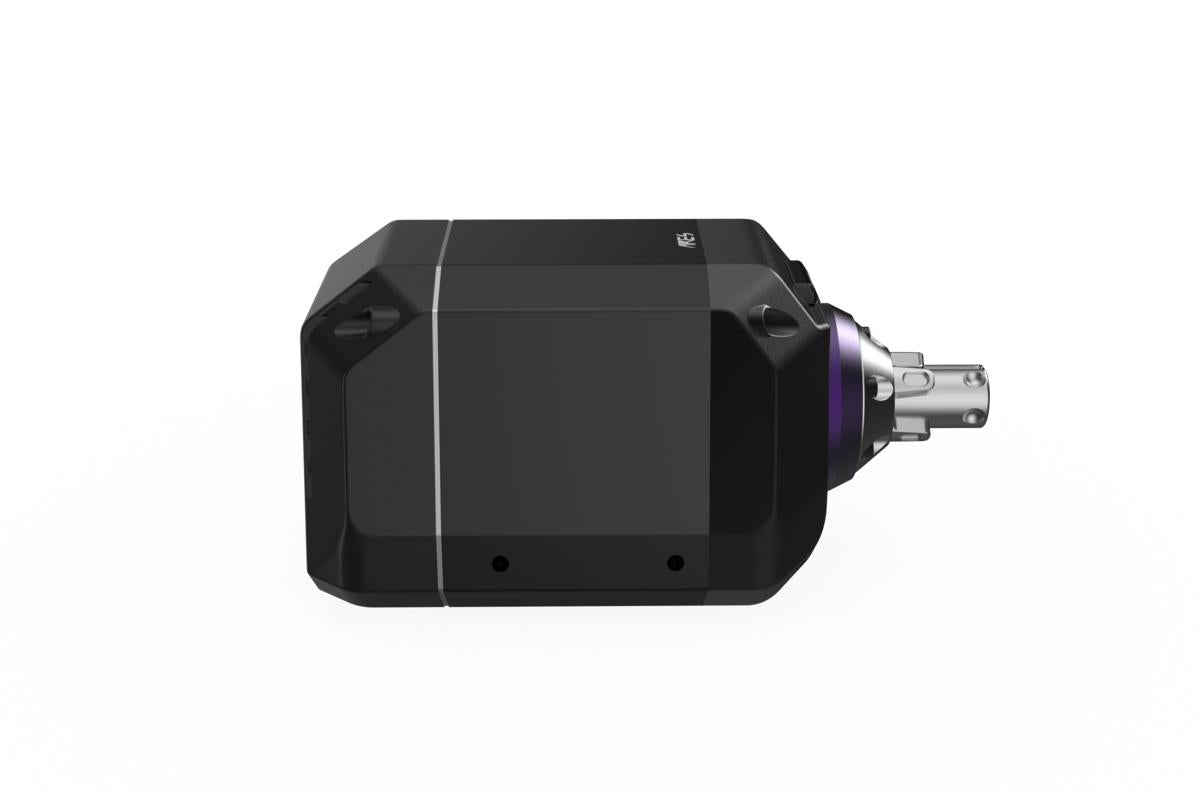

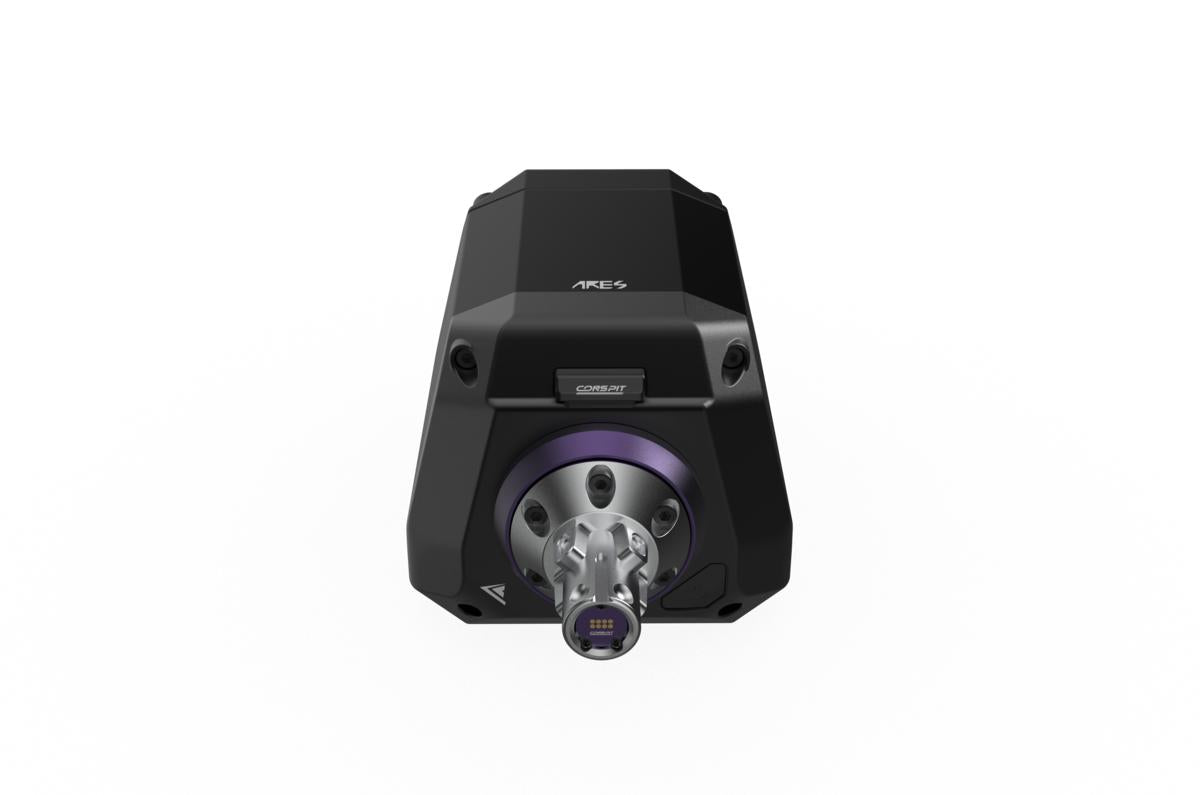

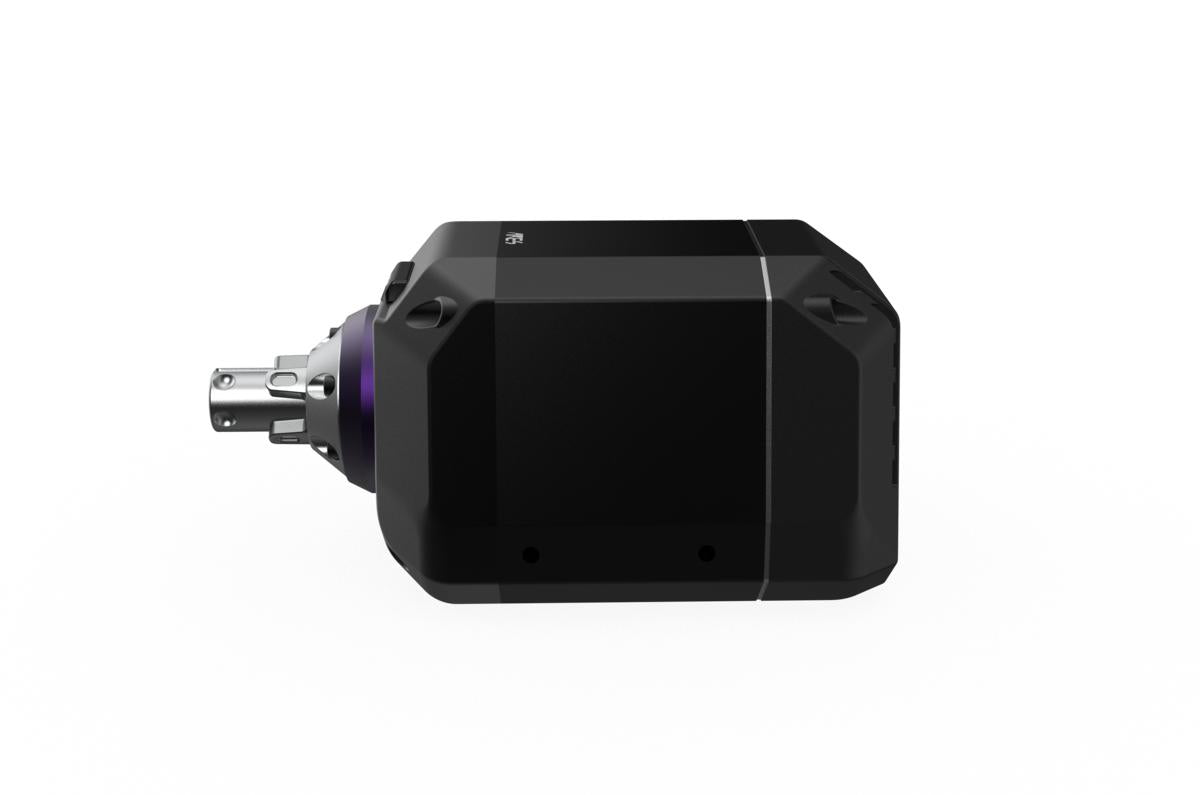

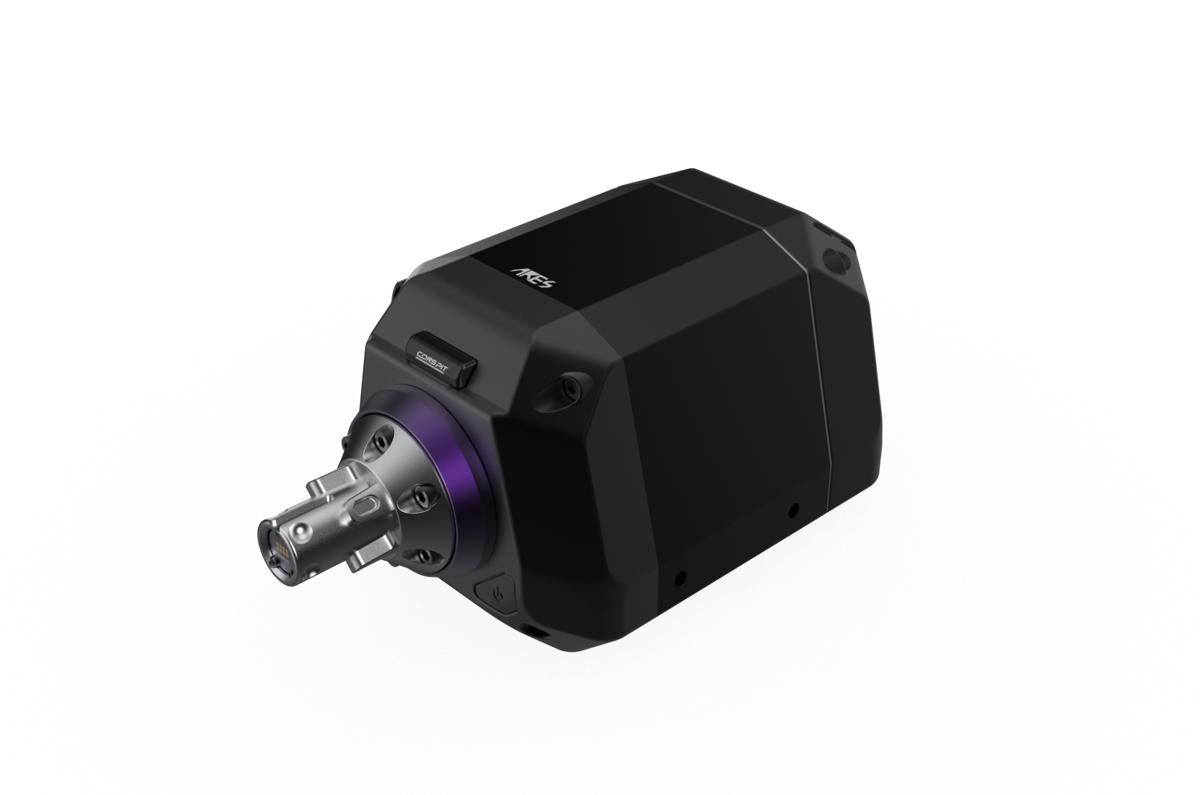

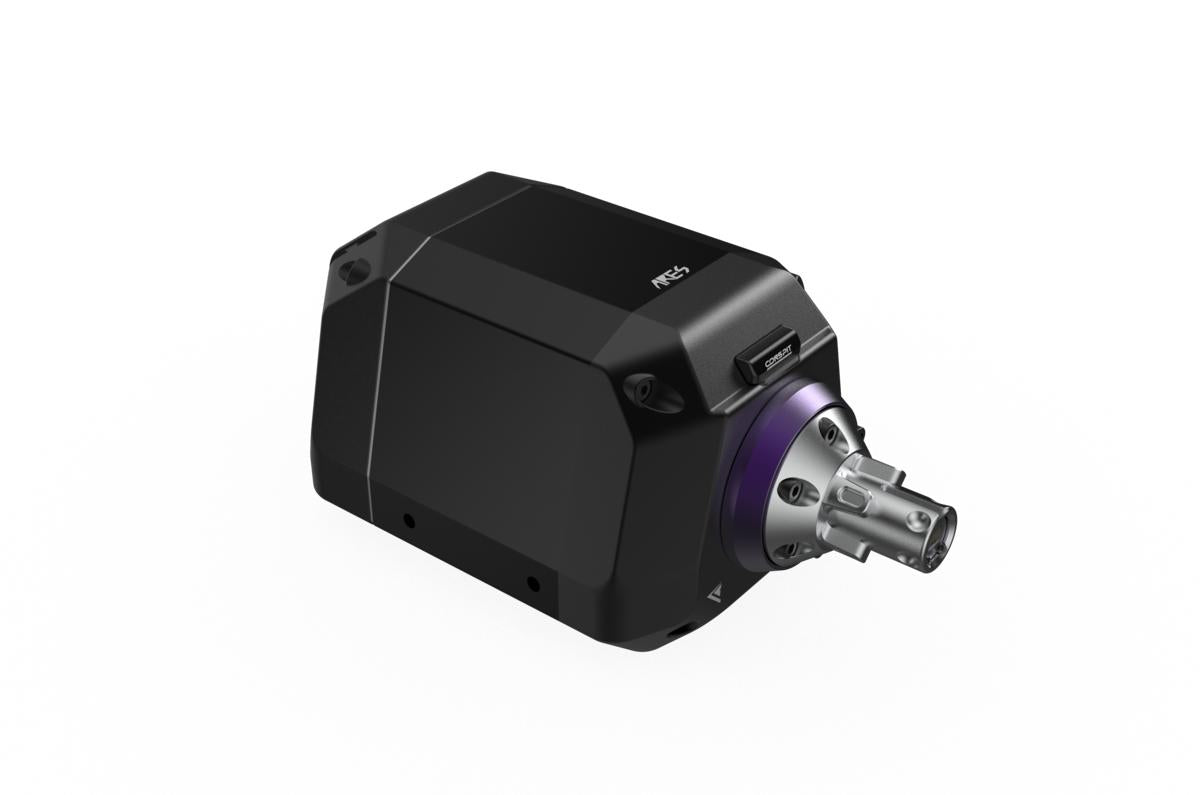

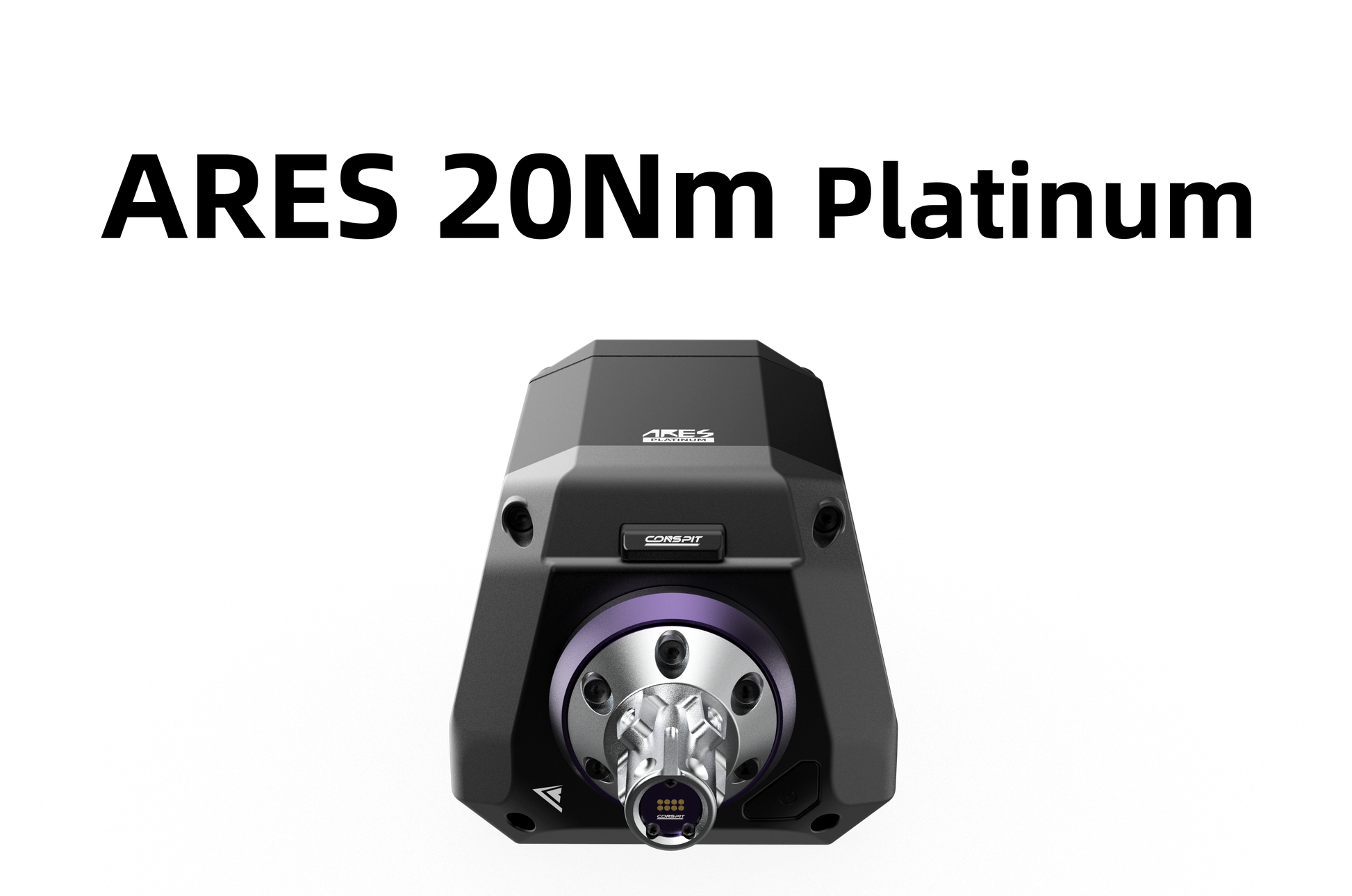

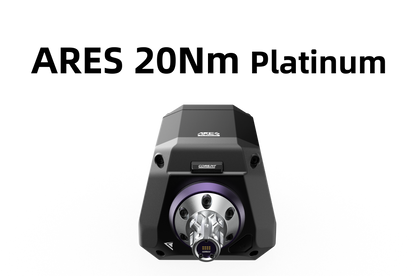

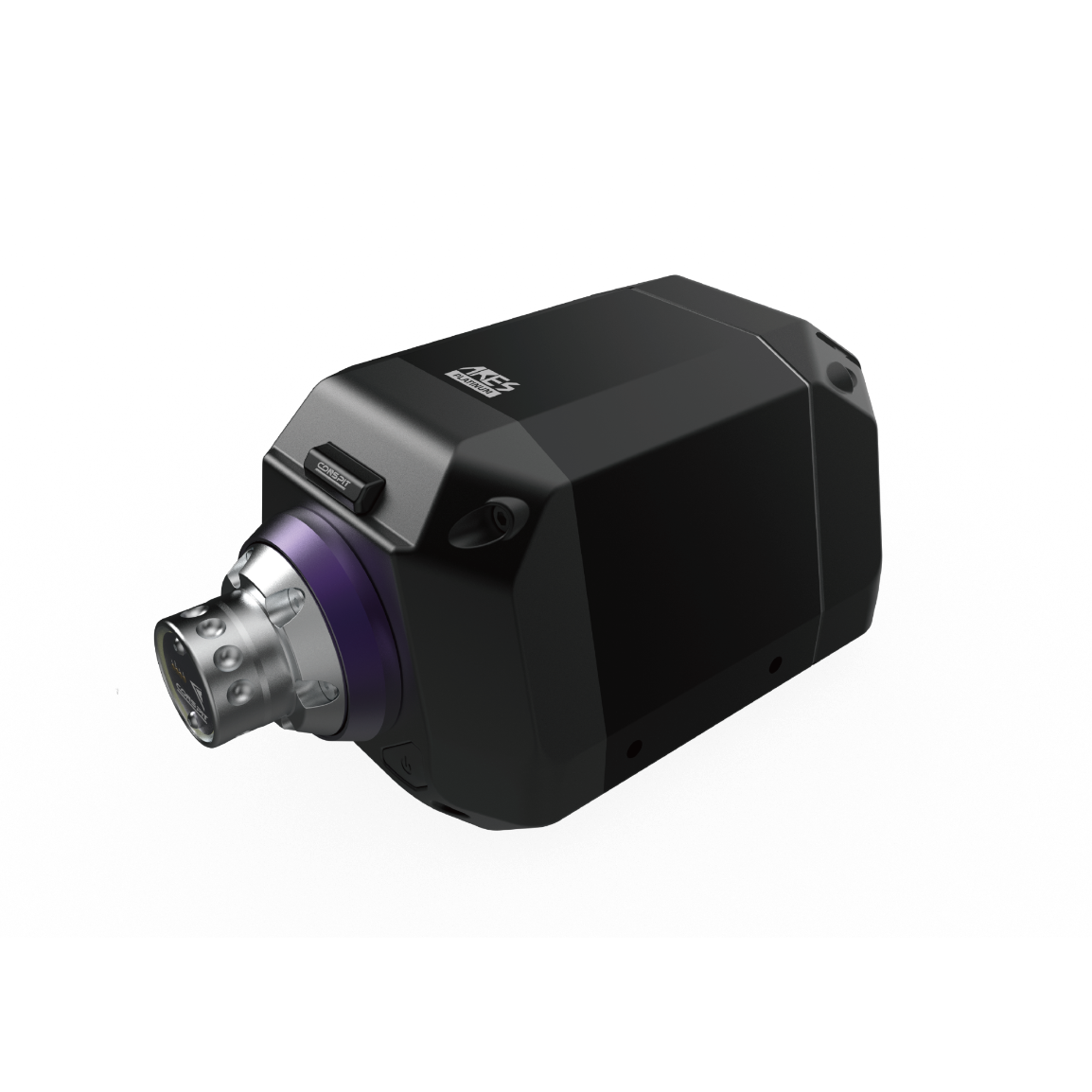

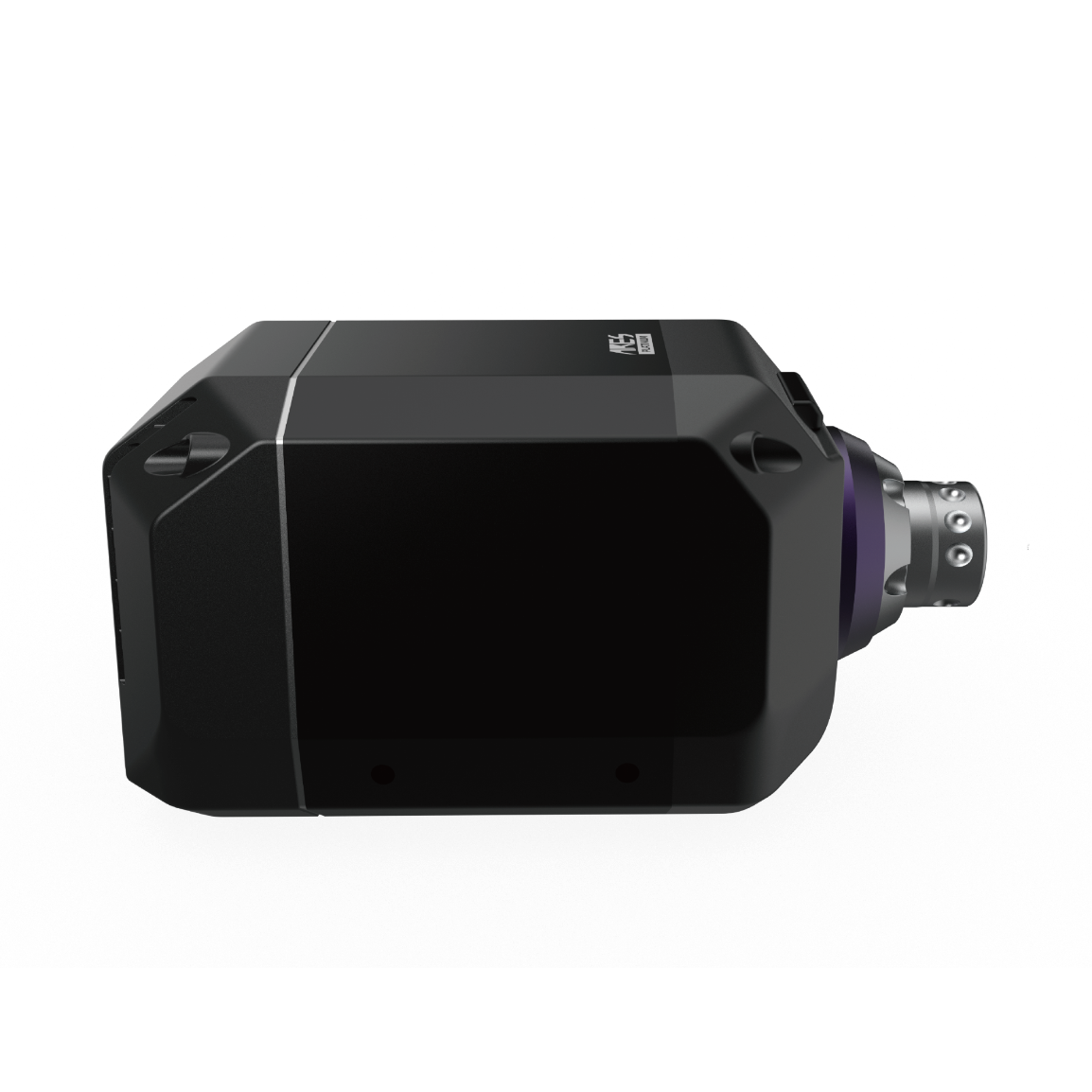

CONSPIT ARES Platinum 18Nm (holding Torque) Direct Drive Sim Racing Wheelbase

CONSPIT ARES Platinum 18Nm (holding Torque) Direct Drive Sim Racing Wheelbase

Overview

The CONSPIT Ares Series Sim-racing Wheelbase is designed for sim racers who seek the ultimate competitive experience. Equipped with a high-precision skew-pole direct-drive motor specifically developed for sim racing and a deeply optimized high-performance force feedback system, it delivers an unprecedented realistic driving experience with highly detailed tactile feedback.

Highlights

Superior Performance

• Utilizing high-performance unsymmetric dual processors at 170MHz+168MHz for efficient and stable calculations.
• Industry-leading high-precision optical encoders with <0.01° angular resolution and 23-bit resolution for precise input capture.
• 20 million RPM military-grade slip ring for stable signal transmission and interference-free communication.

Masterful Control

• Leading motor control system with excellent stability and accuracy in force feedback torque output.
• Torque response performance up to 9.5Nm/ms for detailed high-frequency feedback.

Professional-grade Force Feedback Algorithm

Developed with Open FFBoard and optimized by racing professionals and vehicle dynamics engineers, the Ares delivers highly realistic vehicle dynamics and surface feedback.

Specialized for the Task

Unlike off-the-shelf industrial motors, the Ares motor is developed specifically for sim racing, with optimizations for handling, torque ripple, and cogging torque for smooth, fast, and precise feedback.

Dual Skewed Pole Design

Stator and rotor are both skewed to reduce torque ripple, vibration, and noise—resulting in excellent NVH performance.

Ultra-High Torque Density

Compact design with powerful NdFeB magnets and optimized construction achieves immense torque output in a small form factor.

Excellent Torque Ripple

Optimized electromagnetic design through simulations and prototyping achieves ultra-low torque ripple for smooth steering feel.

Advanced Thermal Management

Real-time high-frequency thermal monitoring ensures consistent performance and safety.

Innovative Industrial Design

Compact and visually lightweight profile delivers both aesthetic appeal and performance functionality.

Winning with Details

High-quality Materials

Constructed from aerospace-grade aluminum alloy for durability and rigidity.

Efficient Heat Dissipation

Tested design keeps the system cool during long races.

Advanced Manufacturing Techniques

Combines forming, machining, and surface treatments for a refined finish.

POGO Module

Magnetic front contacts for quick installation and expansion of functional modules.

High Safety Design

Built-in safety mode allows secure operation and safe use by children under supervision.

Conspit Link 2.0

Software for configuring functions, monitoring status, and switching between game-specific presets. Pro driver-developed presets included.

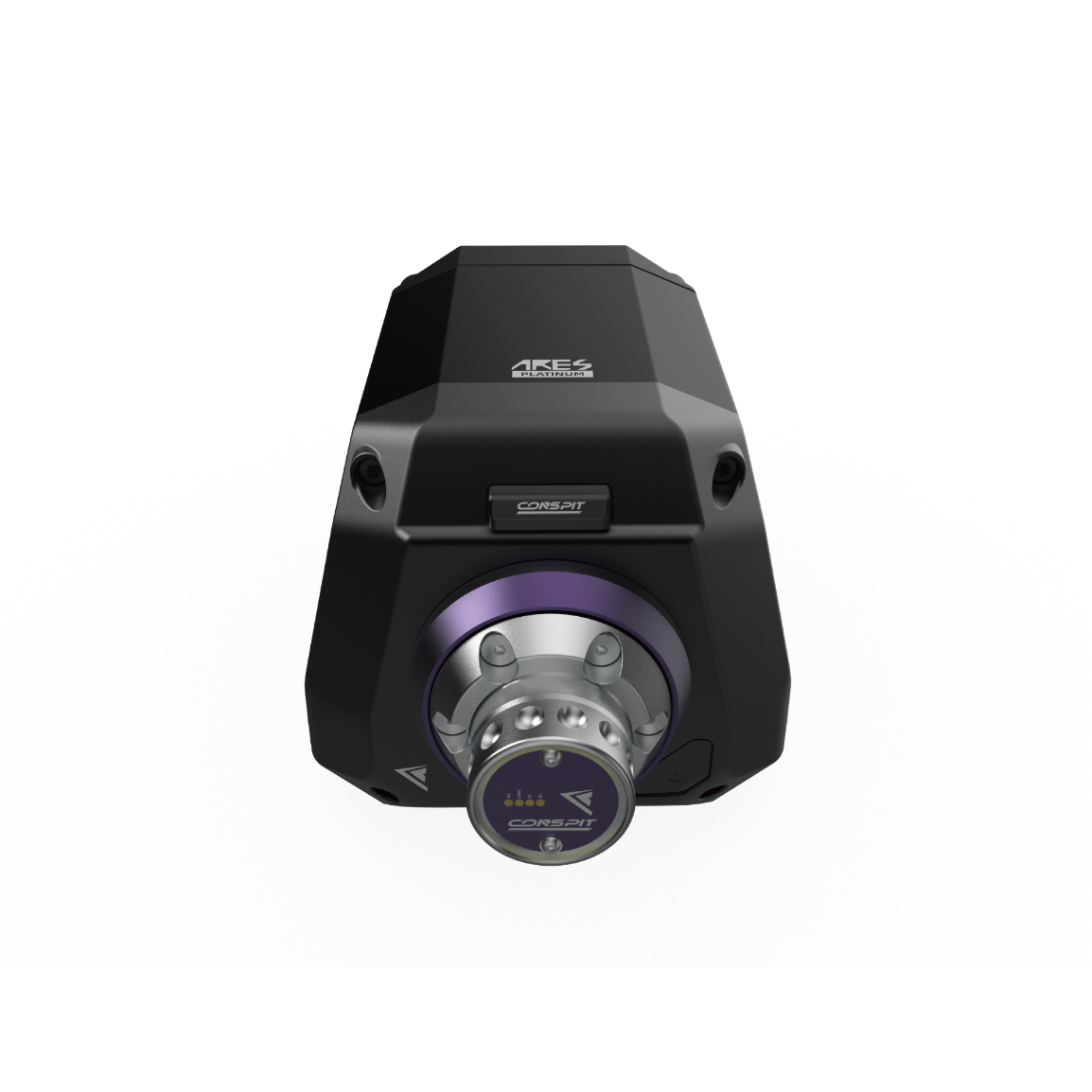

CDP Quick Release

Features clasp + ball structure like real Formula racing. CNC machined from 7075 aluminum for strength and longevity. Spring contact ensures reliable plug-and-play connection.

Specifications

• Model: Ares 10NM Sim-racing Wheelbase
• Dimensions: 134 x 150 x 269 mm
• Net Weight: 5.6 kg
• Maximum Torque: 10Nm
• Encoder: High-precision optical encoder
• Motor: Dual Skewed Pole Design Motor
• Resolution: 23-bit
• Quick Release: CONSPIT CDP (clasp + ball design)
• Mounting Holes: M6 x 4 (bottom), M8 x 4 (sides)
• Platform: PC (Windows)
• E-Stop: Optional
• Connection: USB
• Cable: USB 3.0
• Software: CONSPIT LINK 2.0
