Step-wise Brake Strength Adjustment with Hydraulic Preload Fine-tuning
Independent Throttle Travel & Force Adjustment
Vibration Feedback (iRacing & SimHub Compatible)
Custom Mapping Curve
Race-Grade Full-CNC Aluminum Alloy Construction
Dual-Stage Hydraulic System
The CPP EVO’s second-generation dual-stage cylinders simulate real-car brake calipers.
As you press the pedal, hydraulic fluid first compresses a softer front-stage elastomer, then engages both front and rear stages for a firmer response.
Front- and rear-stage preload knobs let you fine-tune the initial and secondary pedal feel independently.
20 MPa High-Precision Sensor
A 20 MPa hydraulic sensor detects minute pressure changes and translates them into ultra-precise braking performance—delivering authentic racing dynamics for professional sim drivers.
Evolved Durability
CONSPIT’s redesigned internal layout, enhanced sealing, and premium materials ensure superior high-pressure endurance and rock-solid performance in the most demanding virtual racing environments.
Exceptional Adjustability
Ergonomics: Fully adjustable pedal spacing, surface angle, panel height, and footrest position for maximum comfort.

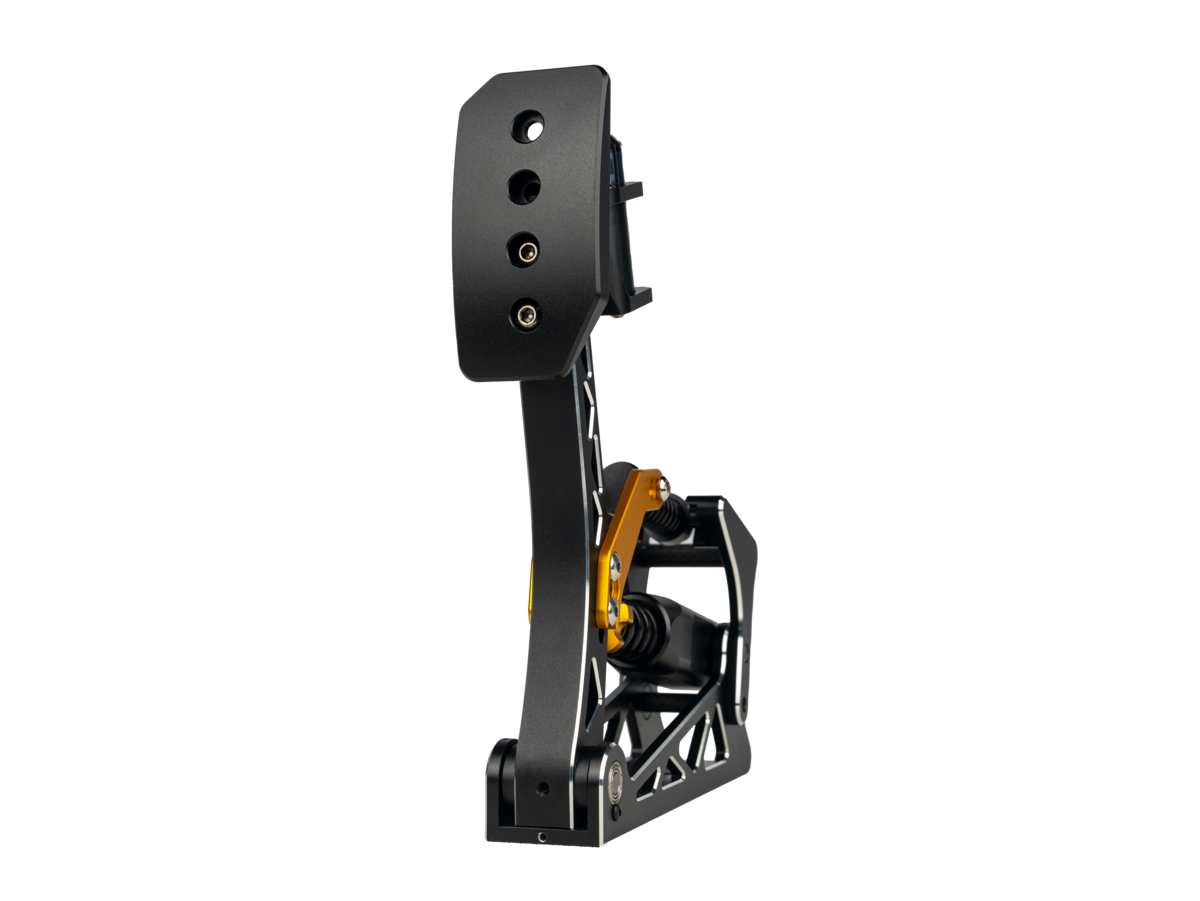

Throttle: Four-step spring-preload adjustment; independent travel & force tuning.
Brake: Four-stage preload for front & rear cylinders; separate pedal-travel adjustment.
Clutch: Four-level bite-point preload adjustment.
Vibration Feedback
Ships standard with the M-DVF vibration module.
Supports native iRacing vibration feedback and SimHub shaker-motor control for immersive tactile cues.
Build & Aesthetic
Machined from 6061-T6 aluminum alloy with a fine sand-blasted & anodized finish, the CPP EVO combines race-grade strength with CONSPIT’s modern design language.
Software & Calibration
Conspit Link 2.0 software provides one-click calibration, custom mapping curves, brake-input limits, and preset profiles—no third-party tools required.
Specifications
Dimensions: 332 × 396 × 285 mm
Material: CNC-machined 6061-T6 aluminum alloy
Mounting: Rig & aluminum-profile fixtures
Platform: Windows PC
Connection: USB-A direct (Type-C to A adapter included; future Type-C to C for Ares wheelbases)
Compatibility
Mounts directly to GT-Lite, FP-Lite, GT-S and similar aluminum-profile rigs.
Upcoming Type-C to Type-C cable will enable direct connection to Ares series wheelbases for a fully integrated sim-racing ecosystem.
