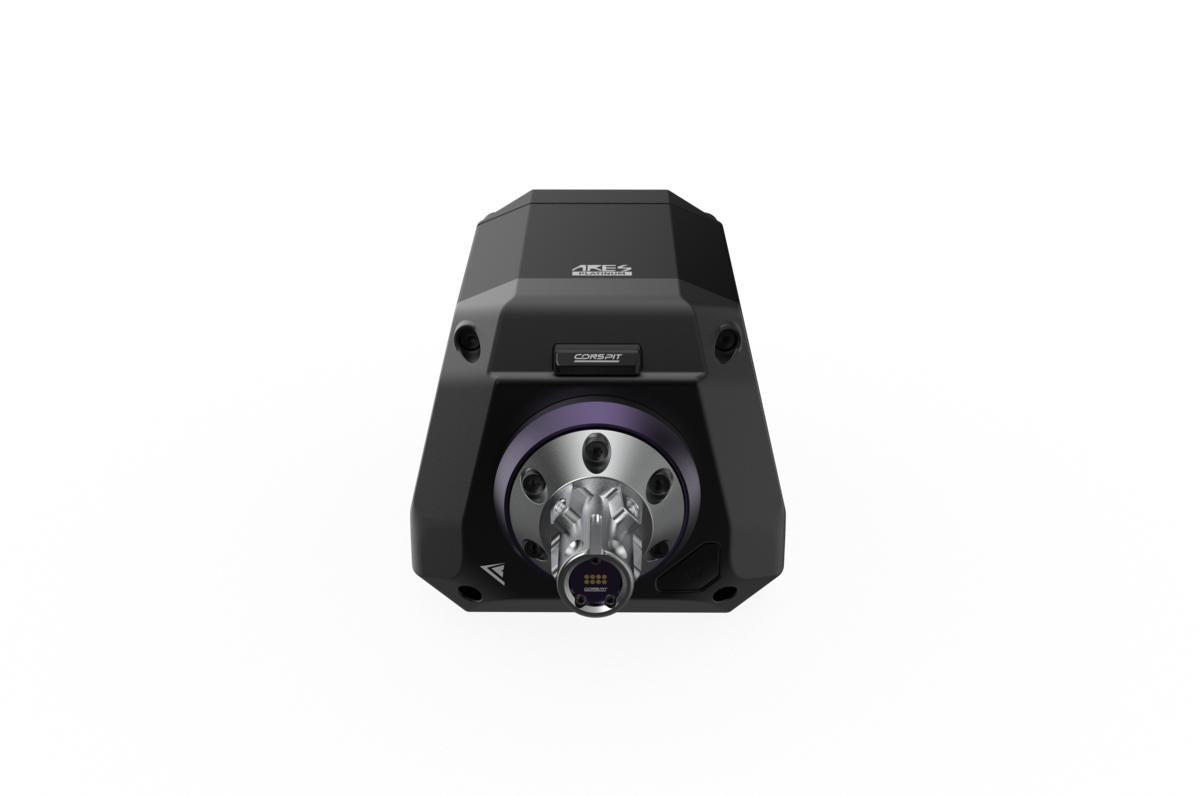

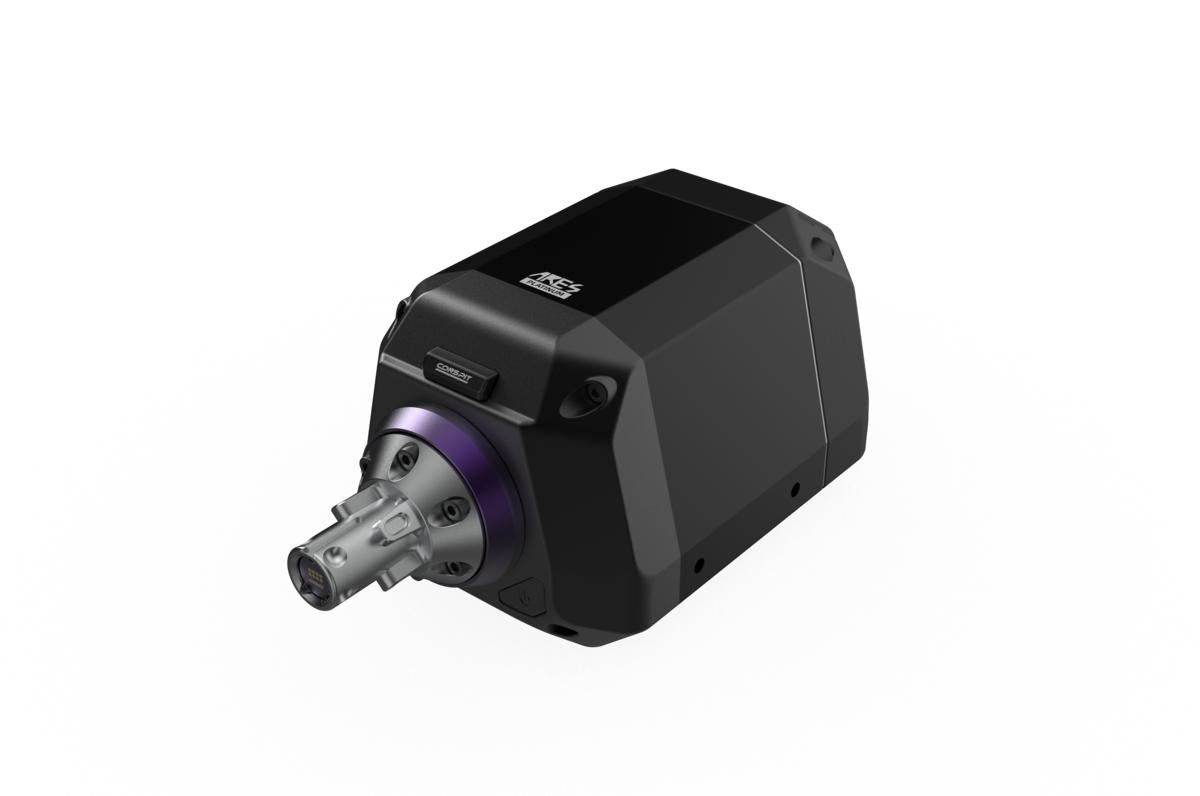

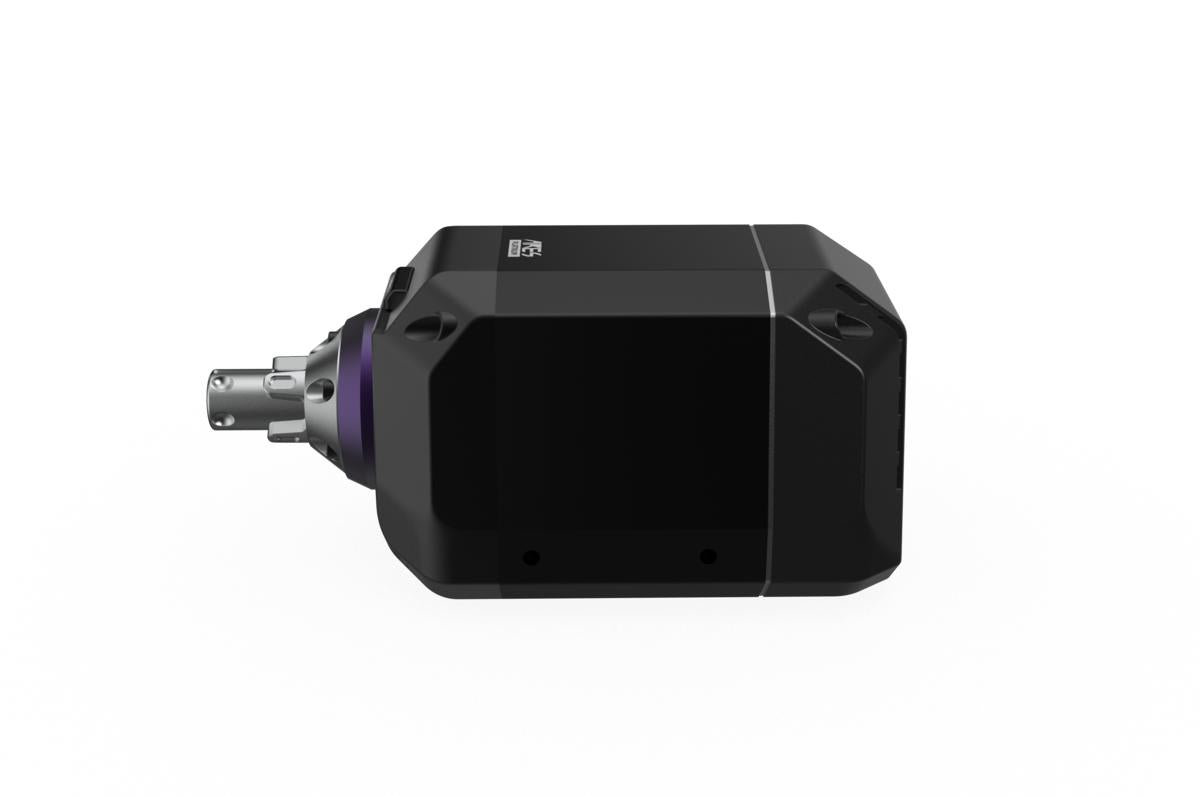

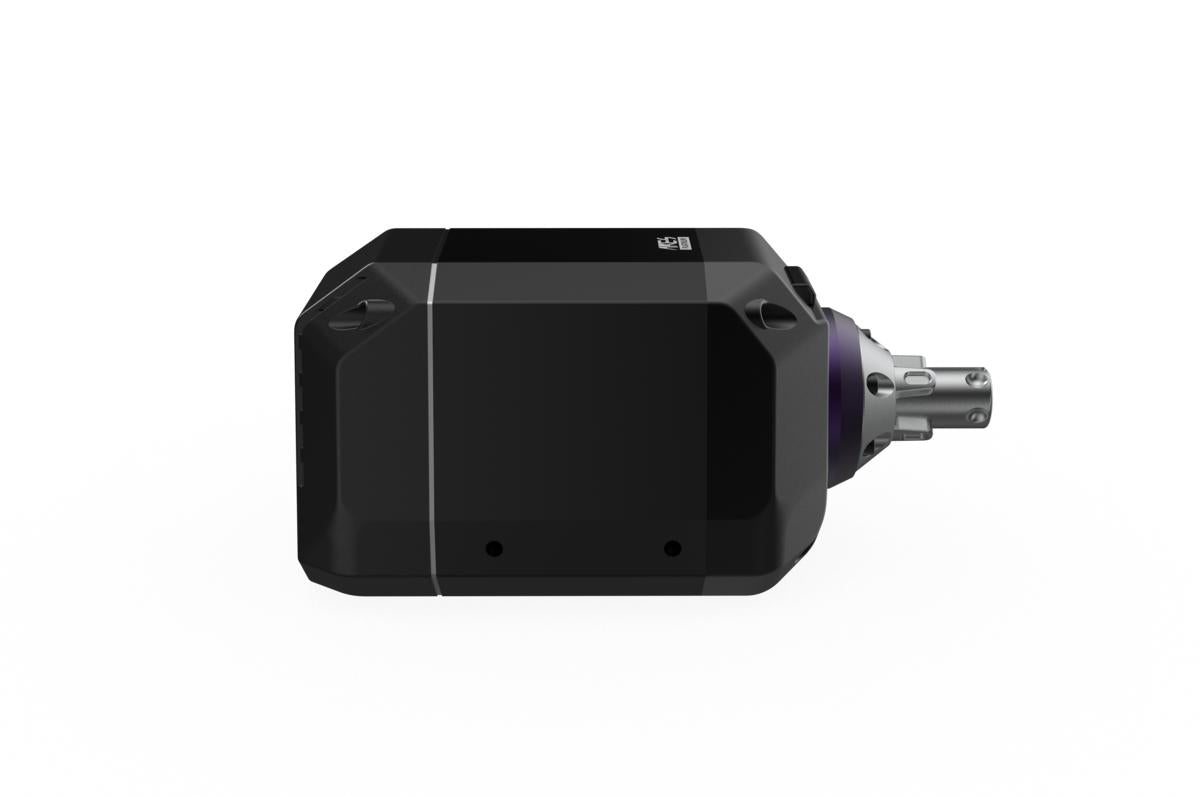

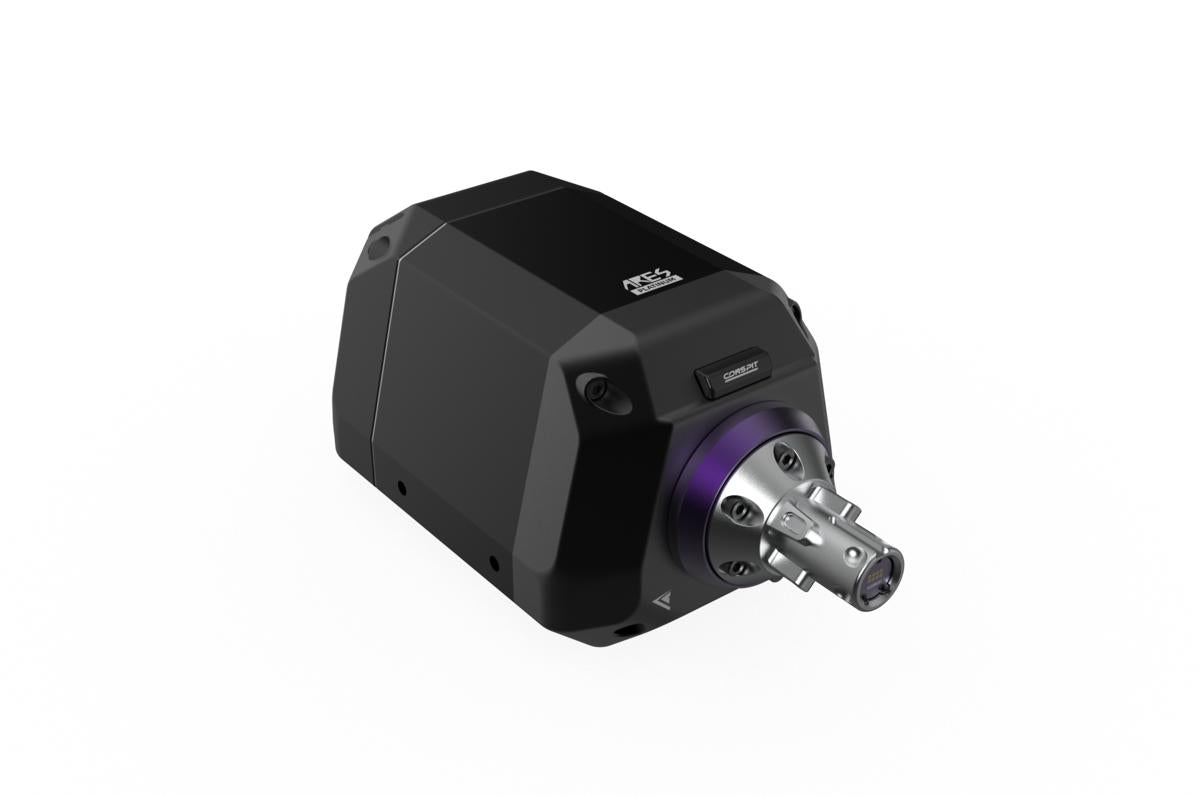

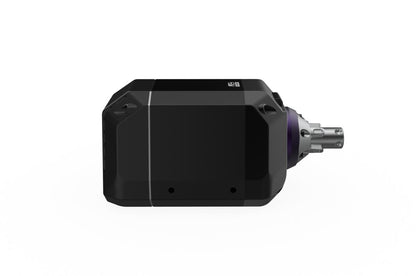

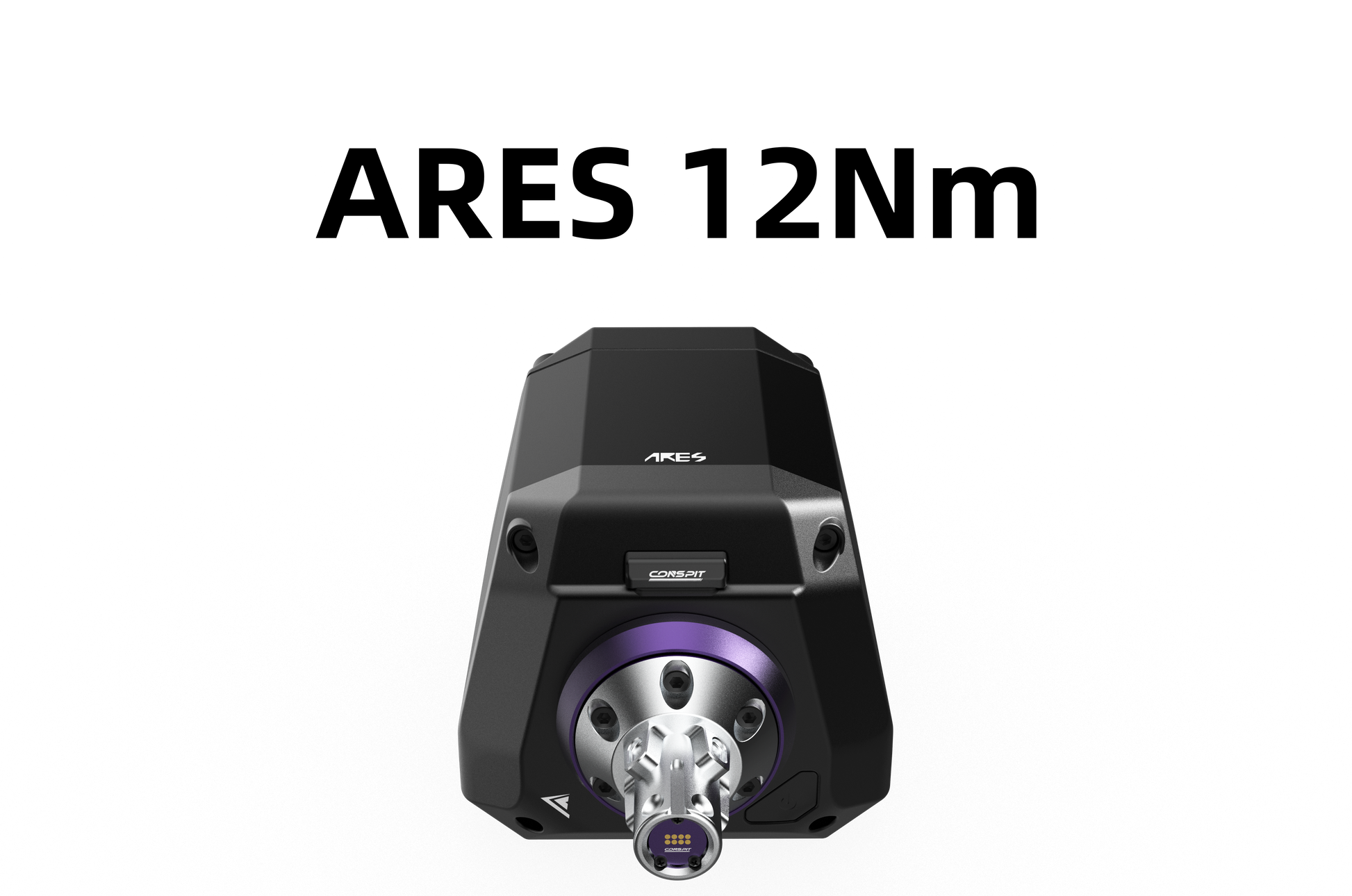

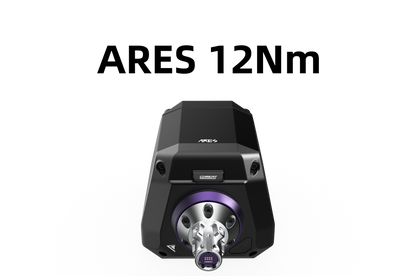

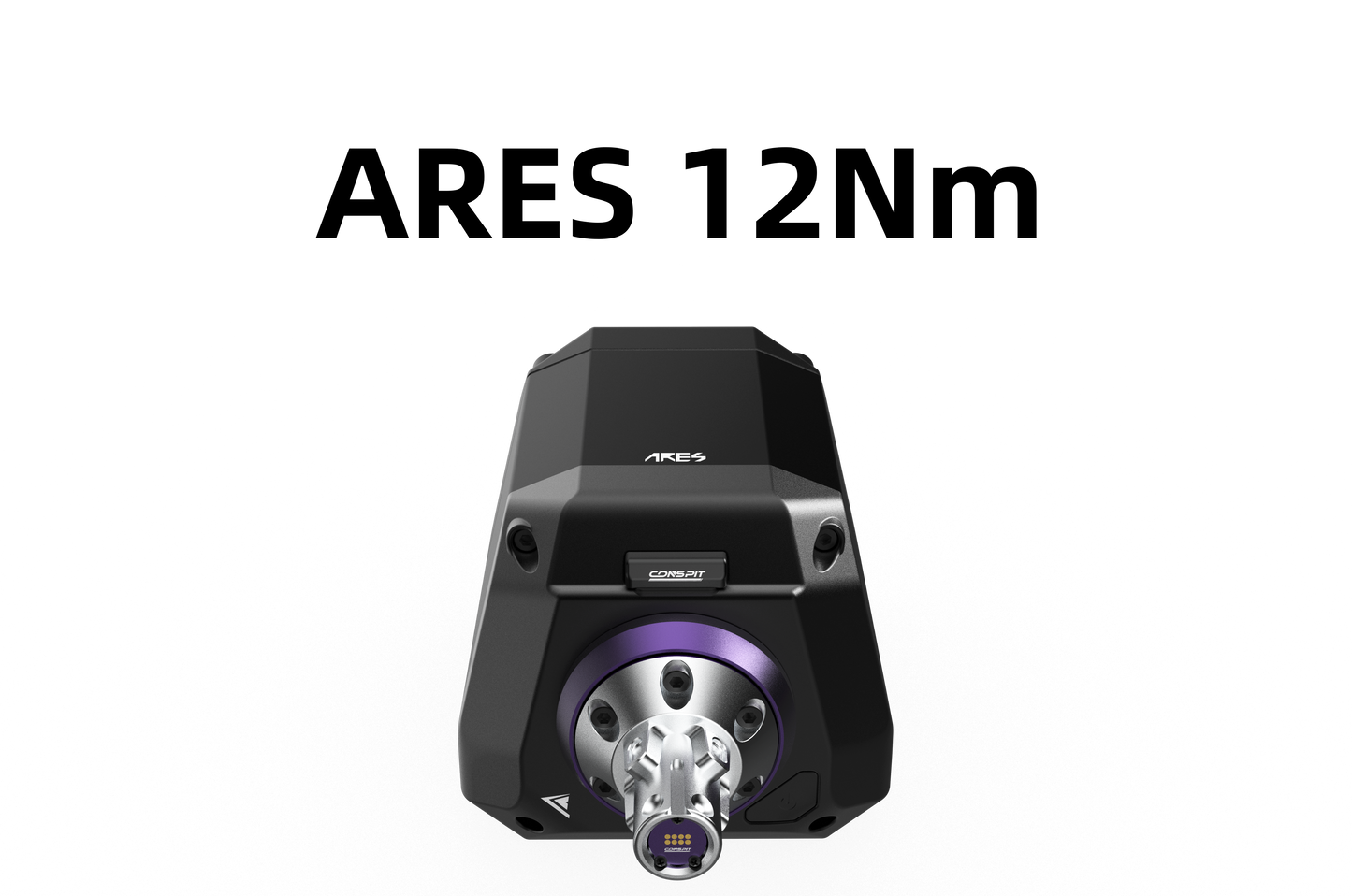

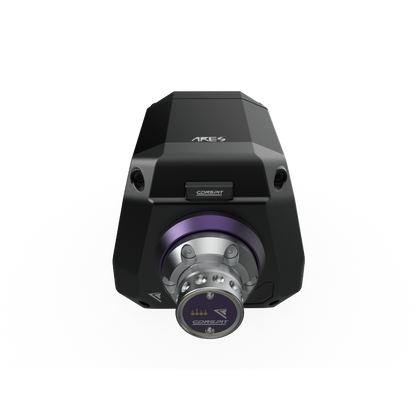

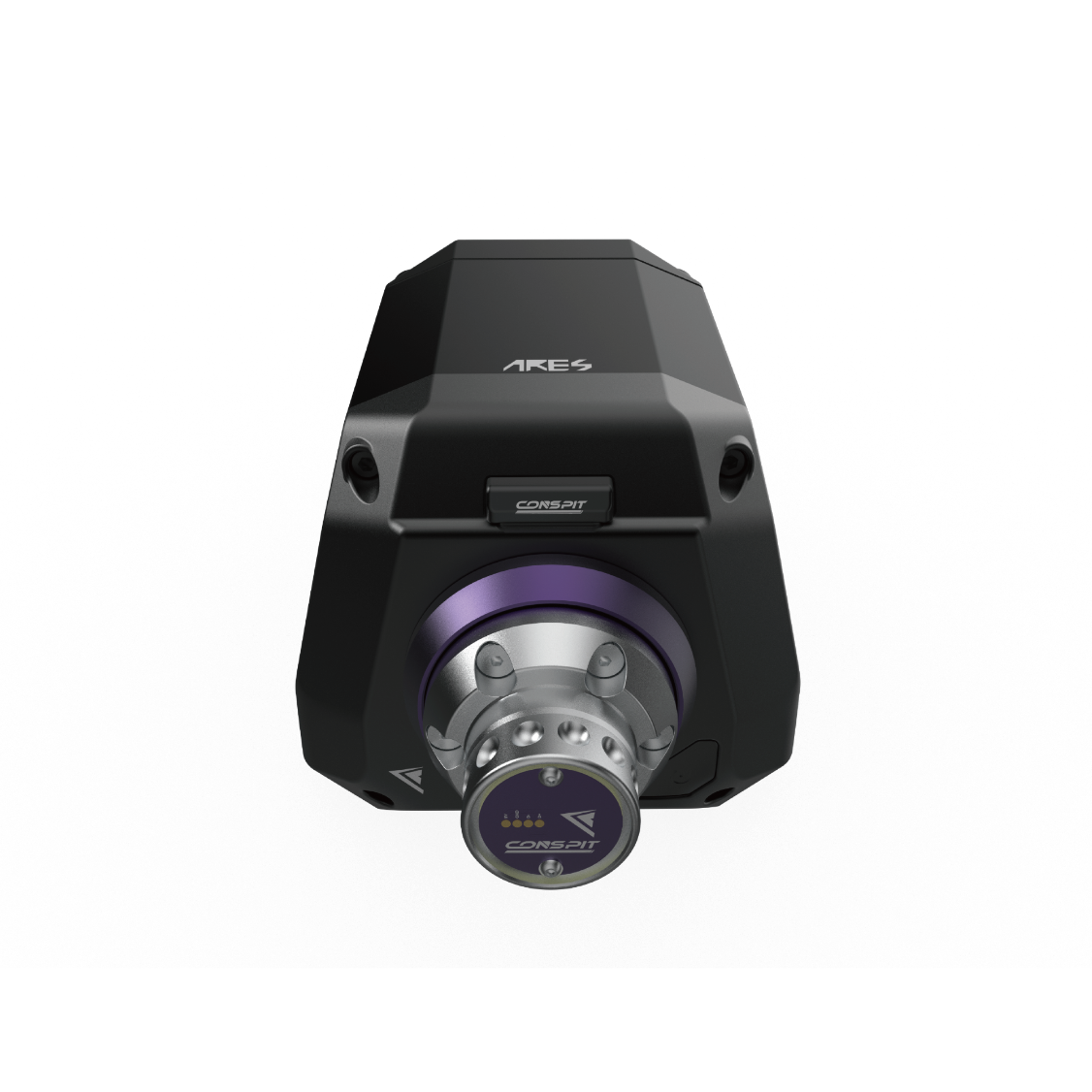

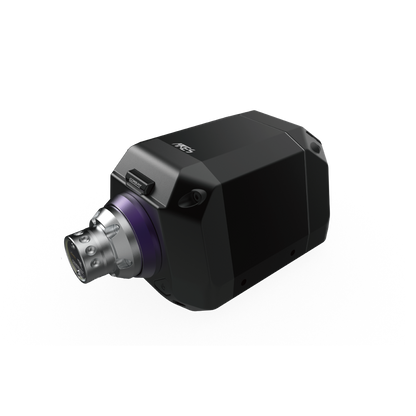

Conspit ARES 12Nm Direct Drive Sim Racing Wheelbase

The Conspit ARES 12Nm Direct Drive Wheelbase is engineered for competitive sim racers who demand precision, smooth force feedback, and consistent performance in a compact, professional-grade package. Built on CONSPIT’s proprietary ARES direct drive platform, the ARES 10Nm delivers refined steering detail, rapid torque response, and exceptional control fidelity.

Developed by CONSPIT’s motorsport engineering team in collaboration with professional drivers, the ARES series represents CONSPIT’s first-generation direct drive system—designed specifically for sim racing rather than adapted from industrial servo motors.

---

Key Highlights

• 12Nm Holding Torque – Balanced power for competitive sim racing
• 23-bit High-Resolution Optical Encoder – Ultra-precise steering position detection
• Skew-Pole Direct Drive Motor – Designed specifically for sim racing applications
• Advanced Force Feedback Dynamics – Smooth, detailed, and responsive output
• Ultra-Low Cogging Torque – Exceptionally clean steering feel

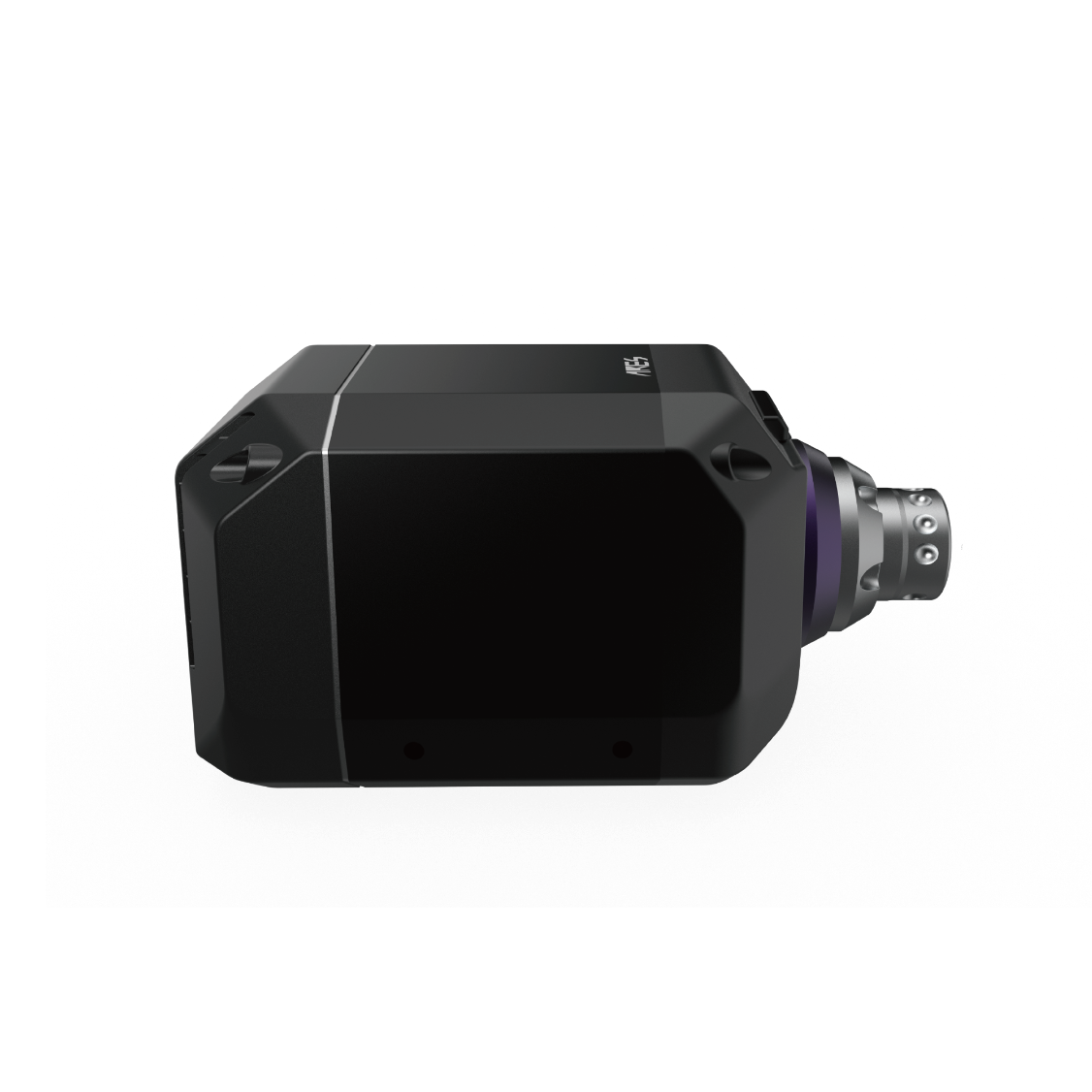

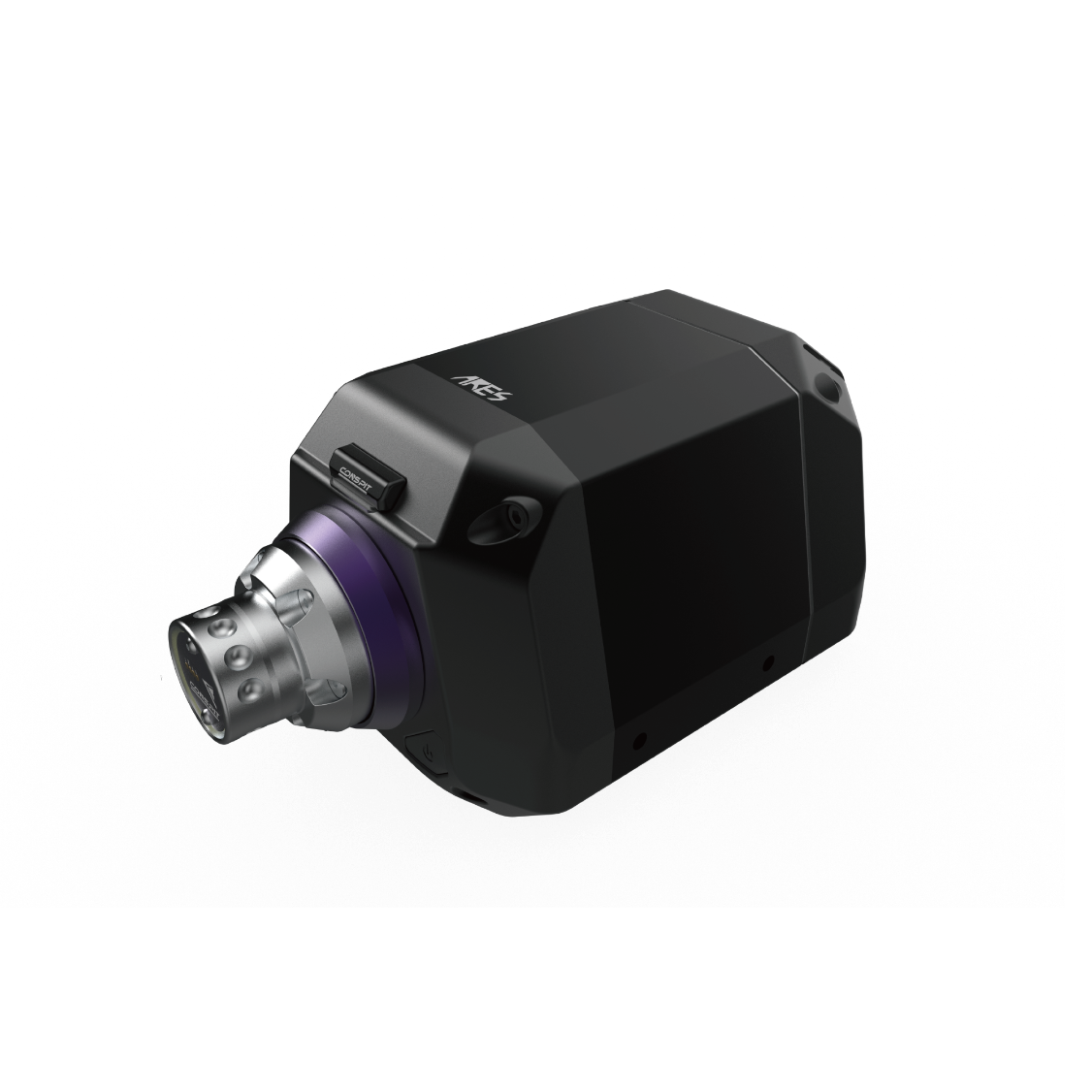

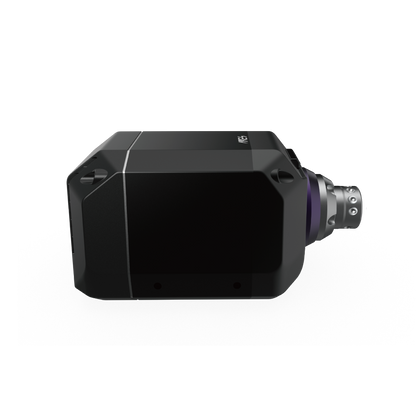

• Compact CNC Aluminum Housing – Rigid, durable, and thermally efficient
• CONSPIT CDR Quick Release System

---

23-bit Optical Encoder Precision

At the core of the ARES 12Nm is a 23-bit high-resolution optical encoder, delivering extremely accurate steering position detection with superior consistency over time. Compared to magnetic encoders of similar resolution, optical encoders provide higher accuracy, smoother feedback, and improved long-term reliability.

This enables the wheelbase to capture fine steering inputs and micro-corrections with exceptional clarity, particularly important in high-speed and high-downforce racing scenarios.

---

Skew-Pole Direct Drive Motor Architecture

Unlike off-the-shelf industrial servo motors, the ARES motor is a proprietary skew-pole direct drive design developed specifically for sim racing. Both the stator and rotor utilize a dual skewed pole structure to significantly reduce torque ripple, electromagnetic vibration, and noise.

This design achieves:

• Ultra-smooth force feedback output
• Minimal cogging torque (under 2.3%)
• Excellent NVH (Noise, Vibration, Harshness) performance
• Highly stable steering feel under load

---

Advanced Force Feedback Dynamics

The ARES platform features an advanced motor control system capable of extremely fast torque response. With a high torque slew rate, the wheelbase accurately reproduces rapid force changes such as kerb strikes, surface transitions, and tyre load variations.

This results in a force feedback experience that is both highly detailed and predictable—allowing drivers to extract more information from the car without excessive harshness.

---

Thermal Stability & Reliability

Real-time, high-frequency temperature monitoring ensures stable operation of both the motor and control electronics. The CNC-machined aluminum housing is designed for effective heat dissipation, maintaining consistent performance during long racing sessions and endurance events.

---

Industrial-Grade Torque Validation

CONSPIT employs precision, industry-grade torque testing during development to validate actual torque output at the steering wheel. Using high-precision dynamic torque sensors with sub-0.01Nm resolution, real-world torque delivery is measured and optimized to ensure accuracy and consistency.

This approach ensures that the ARES 12Nm delivers genuine, usable torque rather than theoretical or inflated figures.

---

CONSPIT LINK 2.0 Software

The ARES 12Nm is fully configurable via CONSPIT LINK 2.0 software, allowing users to:

• Fine-tune force feedback parameters
• Monitor wheelbase status
• Create and manage custom presets
• Switch quickly between different simulators and vehicle profiles

Official presets developed by professional drivers and vehicle dynamics engineers are included for supported simulators.

---

Quick Release & Mounting

• Quick Release: CONSPIT CDR Quick Release System
• Bottom Mounting: M6 × 4
• Side Mounting: M8 × 4

The CDR Quick Release system follows widely adopted sim racing standards, ensuring compatibility with a wide range of steering wheels and accessories.

---

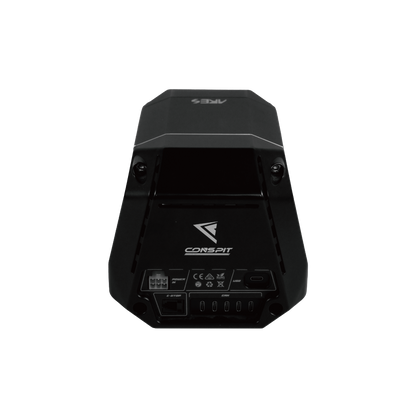

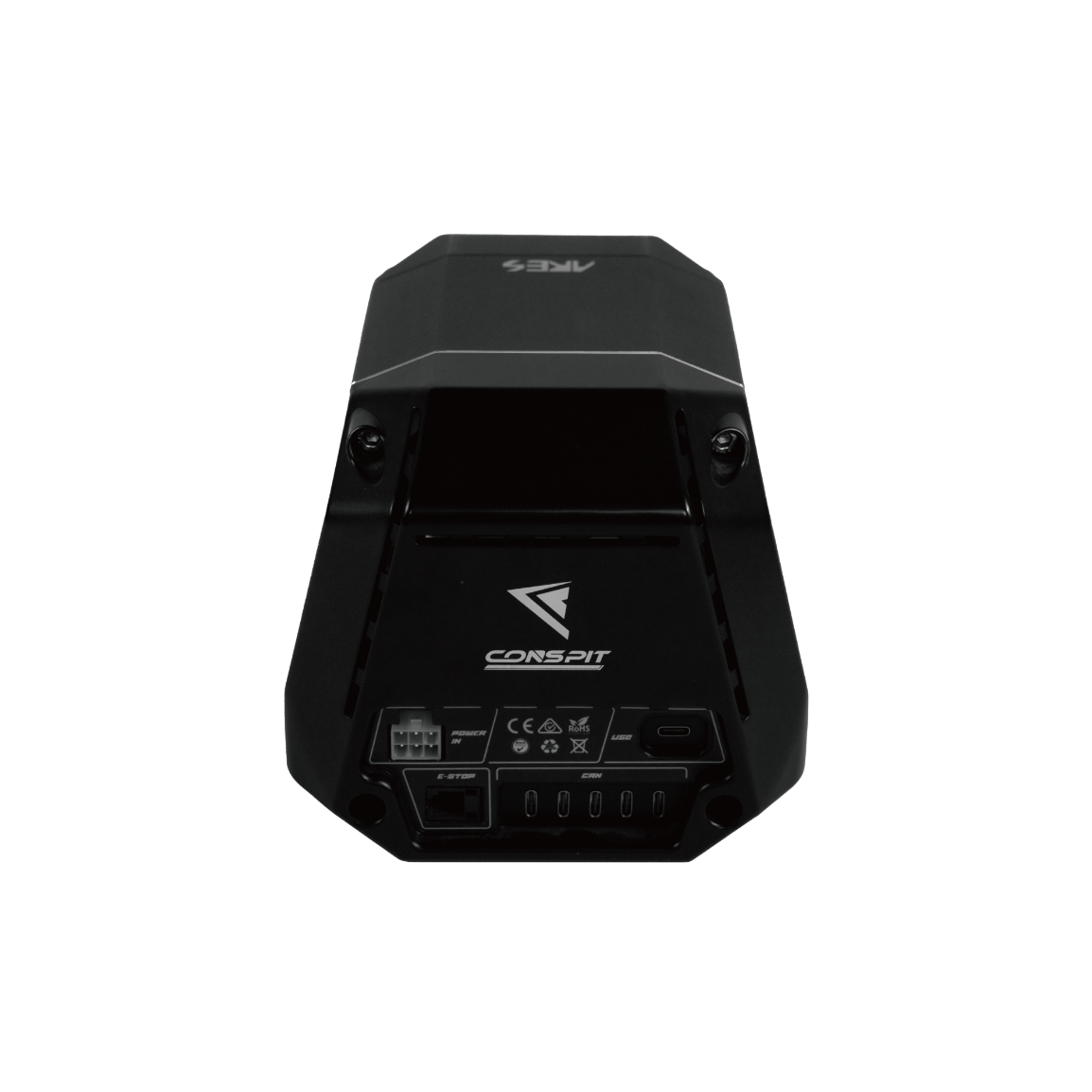

Compatibility & Connectivity

• Platform: Windows PC
• Connection: USB direct connection
• Software: CONSPIT LINK 2.0
• Designed for high-performance sim racing applications

---

Frequently Asked Questions

Is the Conspit ARES 12Nm suitable for competitive sim racing?

Yes. The Conspit ARES 12Nm Direct Drive Wheelbase is designed for competitive sim racing, esports, and professional simulator setups, offering precise and consistent force feedback.

What does 12Nm holding torque mean?

12Nm holding torque refers to the continuous torque the wheelbase can sustain without degradation, providing stable and predictable force feedback during long racing sessions.

Does the ARES 12Nm use an optical encoder?

Yes. The ARES 12Nm features a 23-bit high-resolution optical encoder, enabling extremely precise steering position detection and smooth force feedback delivery.

Is the Conspit ARES 12Nm compatible with direct drive steering wheels?

Yes. The wheelbase is compatible with Conspit steering wheels and other wheels using standard quick release systems, depending on mounting configuration.

Which software is used to configure the ARES 12Nm?

The wheelbase is configured using CONSPIT LINK 2.0 software, allowing users to adjust force feedback parameters and manage profiles for different simulators.

Where can I buy the Conspit ARES 10Nm in India?

The Conspit ARES 12Nm Direct Drive Wheelbase is officially available in India from Race Sims, with local support and professional simulator integration guidance.

Learn more about Conspit sim racing hardware in India and explore the complete Conspit product ecosystem available from Race Sims.

---

Why Buy from Race Sims?

• Official Conspit sourcing in India
• Local technical guidance and setup support
• Professional simulator integration expertise
• Trusted by racers, teams, and sim racing centers

In India, the Conspit ARES 12Nm Direct Drive Wheelbase is sold and supported by Race Sims, specialists in professional-grade racing simulator solutions.

---

Note: Steering wheel, mounting brackets, and emergency stop are sold separately unless explicitly specified.
